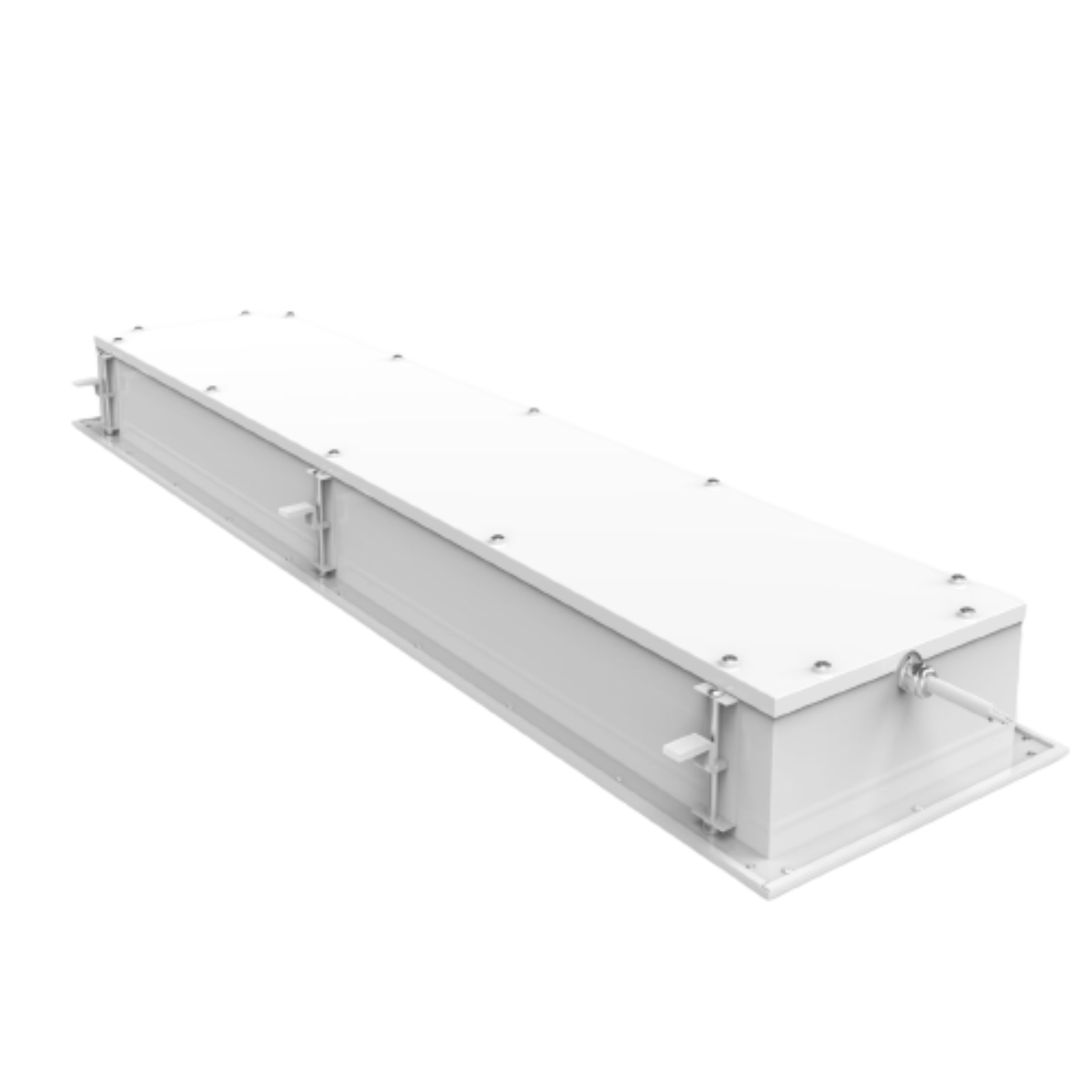

IP65 CLEANROOM GMP RECESSED PANEL LIGHT (top-open version)

Mô tả sản phẩm:

IP65 Cleanroom GMP Reccessed Panel Light (Top-Open version) is a high quality dustproof lighting device from Pi Power Solutions, specialized for specialized lighting environments with strict requirements such as laboratories, cold rooms, cleanrooms manufacturing plants, etc. With its high luminous efficiency, long service life up to 50,000 hours and IP65 protection, IP65 Cleanroom GMP Reccessed Panel Light (Top-Open version) is the perfect choice for installation in areas where it is required. High brightness, high humidity and lots of dirt. Products are genuine warranty by Pi Power Solutions (exchange 1 for 1) from 2 to 3 years.

Mã Model: PP-CPL-T6060-40; PP-CPL-T30120-40

Contact for Price

  • INFORMATION
  • PRODUCT DIMENSIONS
  • DOWNLOAD DOCUMENT

Product's feature

  • Design with Top-open, maintenance is carried out on the ceiling, seperate from the area requiring high cleanliness
  • Adjustable buckler, suitable for thick sandwich panels up to 8 cm
  • Philips driver
  • Advanced Back-lit technology
  • High working temperature (up to 50°C)
  • Bevel edge framed design, prevent dust accumulate

Installation

Step 1: Connect the input wire to the main line

Step 2: Fix the figure to the ceiling by adjustung screws on the 4 edges of lamp

Step 3: Tighten to ensure a tight fit to the ceiling, then proceed to use

Application

IP65 GMP Reccessed Panel Light (Top-Open version) is used in

Thông số kỹ thuật

Dimension (mm): 595*595*92.5; 295*1195*92.5

Power (W): 40W (Optional: 50W)

Luminious Flux (lm): 4800lm

Efficiency (lm/W): 120lm/W

CRI: >80Ra

Ingress Protection: IP65

Beam Angle: 110°

Working Temp: -25°C~40°C

Color Temp (K): 4000K ~ 6500K

Power Factor: > 0.9

Input Voltage: 220V - 240V

Lifespan: 50.000 Hr
