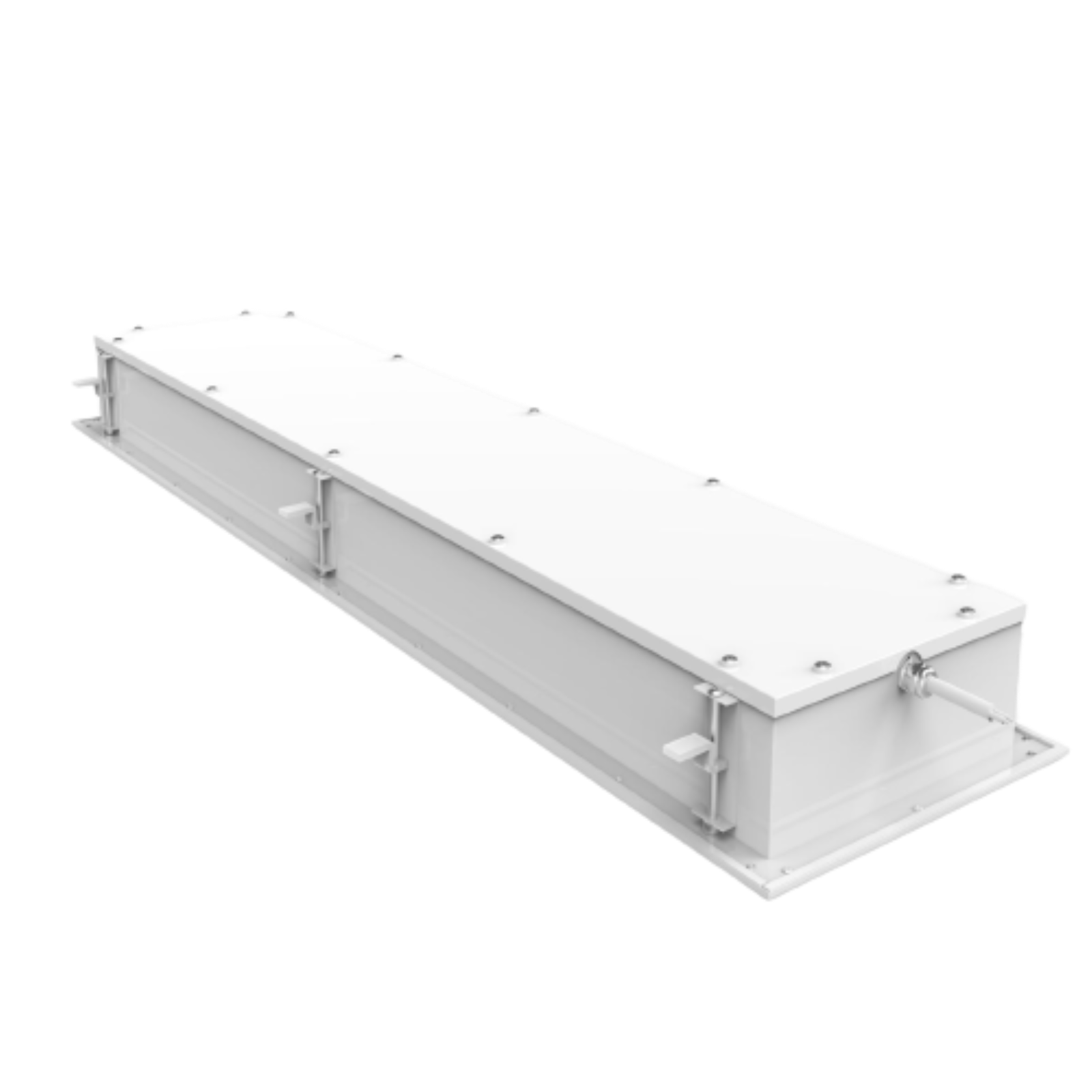

IP65 CLEANROOM GMP RECESSED PANEL LIGHT (standard version)

Mô tả sản phẩm:

IP65 Cleanroom GMP Reccessed Panel Light (standard version) is a high quality dustproof lighting device from Pi Power Solutions, specialized for lighting environments with strict requirements such as laboratories, cold rooms, clean rooms, food manufacturing plants, etc. With its high luminous efficiency, long service life up to 50,000 hours and IP65 protection, IP65 Cleanroom GMP Reccessed Panel Light (standard version) is the perfect choice for installation in areas demanding high brightness with high humidity and enormous dirt. Products are genuine warranty by Pi Power Solutions (exchange 1 for 1) from 2 to 3 years.

Mã Model: PP-CPL-T6060-40; PP-CPL-T30120-40

Contact for Price

Product's feature

  • Adjustable buckler, suitable for thick sandwich panels up to 8cm
  • Phillips driver
  • Advanced Back-lit technology
  • High working temperature (up to 50°C)
  • Bevel edge frame design, prevent dust accumulate

Installation

Step 1: Connect the input wire to the main line

Step 2: Fix the figure to the ceiling by adjusting screws on the 4 edges of light

Step 3: Tighten to ensure a tight fit to the ceiling, then proceed to use

Application

IP65 GMP Reccessed Panel Light (standard version) is used in



Thông số kỹ thuật

Dimension (mm): 595*595*92.5; 295*1195*92.5

Power (W): 40W (Optional: 50W)

Luminious Flux (lm): 4800lm

Efficiency (lm/W): 120lm/W

CRI: >80 Ra

Ingress Protection: IP65

Beam Angle: 110°

Working Temperature: -25°C~40°C

Color Temperature (K): 4000K~6500K

Power Factor: >0.9

Input Voltage: 220V-240V

Lifespan: 50.000 Hr
