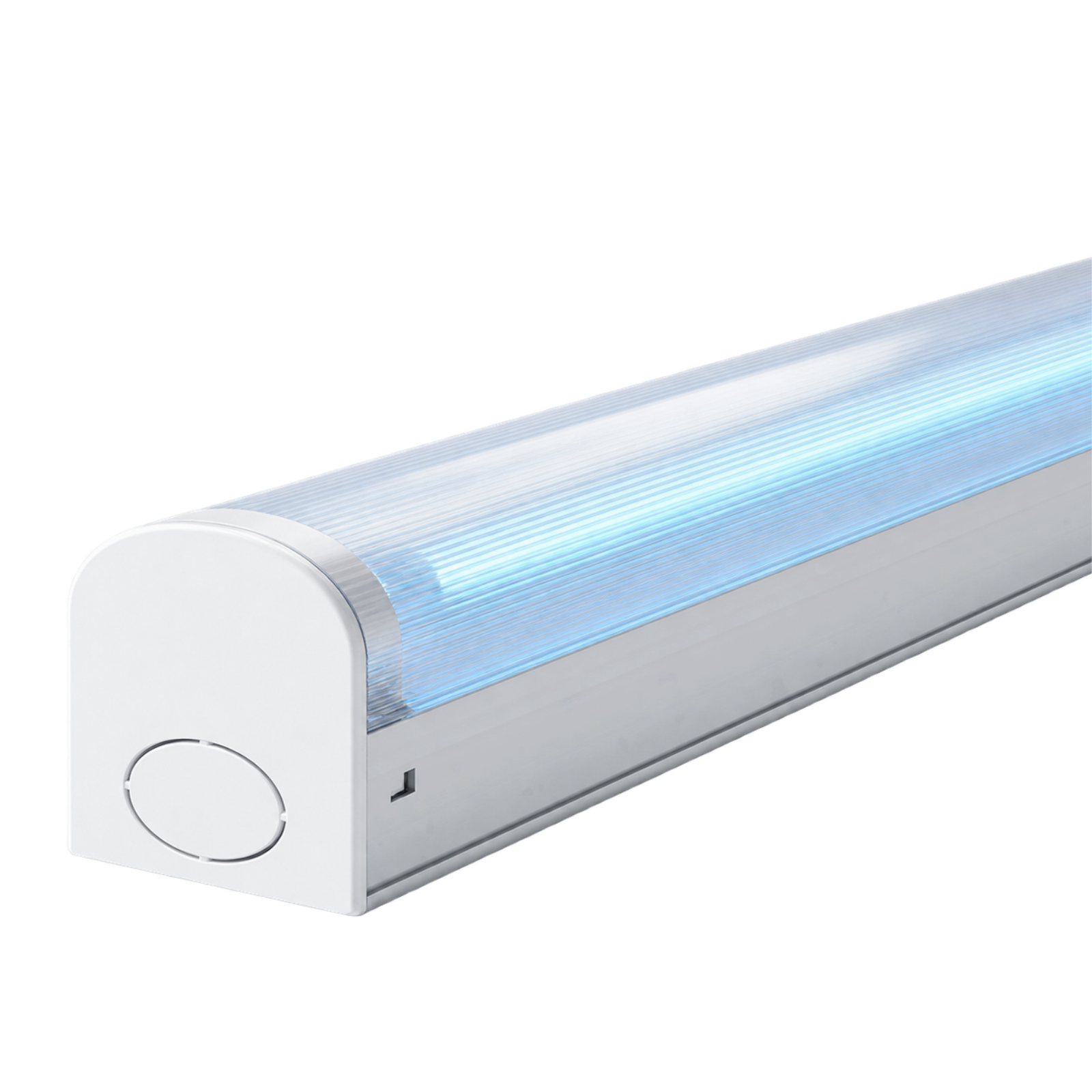

CLEANROOM TEARDROP LIGHT FIXTURE

Product Description

The Cleanroom Teardrop Light Fixture is a lighting solution provided by Pi Power Solutions. Product is designed for clean and controlled environments that require reliable and uniform lighting, including cleanrooms, laboratories, and specialized industrial facilities. The fixture housing is made of heavy-duty aluminum with an anodized or powder-coated finish, providing a durable structure suitable for long-term operation.

An optional UV-cut tube is available for applications requiring reduced UV exposure, with a wavelength of ≥ 500 nm.



Mã Model: PP-O003-FTD-1x20

Contact for Price

  • INFORMATION
  • PRODUCT DIMENSIONS
  • IES File

Special features

  • Housing: Made of heavy-duty aluminum, finished with anodizing or powder coating.
  • Diffuser: Made of PET plastic, optimizing luminous flux output
  • The LED base is made of PC plastic
  • Light source: Use a LED Tube T8 20W (Optional UV-cut with wavelength ≥ 500 nm)

Application

  • Cleanroom
  • Semicondutor
  • Pharmaceutical
  • Electricity
  • Cosmetic

Dimension and Specification

Model number PP-O003-FTD-1x20 PP-O003-FTD-1x20 (UV cut)
Dimension 1220 mm
Power 20 W
Luminous flux 2400 lm 3420 lm
Luminous efficacy  120 lm/W 171 lm/W
Color Rendering Index  Ra ≥ 80
Beam angle 120°
Working temperature - 20°C - 40°C
Color temperature  6000K/6500K

3000K

(Filter yellow Cut UV at Wavelength ≥ 500nm)
Power factor  ≥ 0.90
Ingress protection 220 - 240 VAC
Ingress protection  IP20 / IP54 (Optional)
Lifespan  50.000 Hrs



Specifications

Dimension: 1220 mm

Power: 20W

Luminous Flux: 2400 lm; 3420 lm

Luminous Efficacy: 120 lm/W; 171 lm/W

Color Rendering Index: Ra ≥ 80

Beam Angle: 120°

Working Temperature: - 20°C - 40°C

Color Temperature:  6000K / 6500K (3000K - Yellow filter blocks UV light at wavelengths ≥ 500 nm)

Power Factor: > 0.9

Input Voltage: 220 - 240 VAC

Ingress Protection: IP20 / IP54 (Optional)

Lifespan: 50.000 Hr

Other products

LED CLEANROOM MOUNTING PANEL LIGHT (SLIM VERSION)

LED CLEANROOM MOUNTING PANEL LIGHT (SLIM VERSION)

LED CLEANROOM MOUNTING PANEL LIGHT

LED CLEANROOM MOUNTING PANEL LIGHT

CLEANROOM LED RECESSED TOP-OPEN GMP PANEL LIGHT

CLEANROOM LED RECESSED TOP-OPEN GMP PANEL LIGHT

LED TUBE T8 FIXTURE

LED TUBE T8 FIXTURE

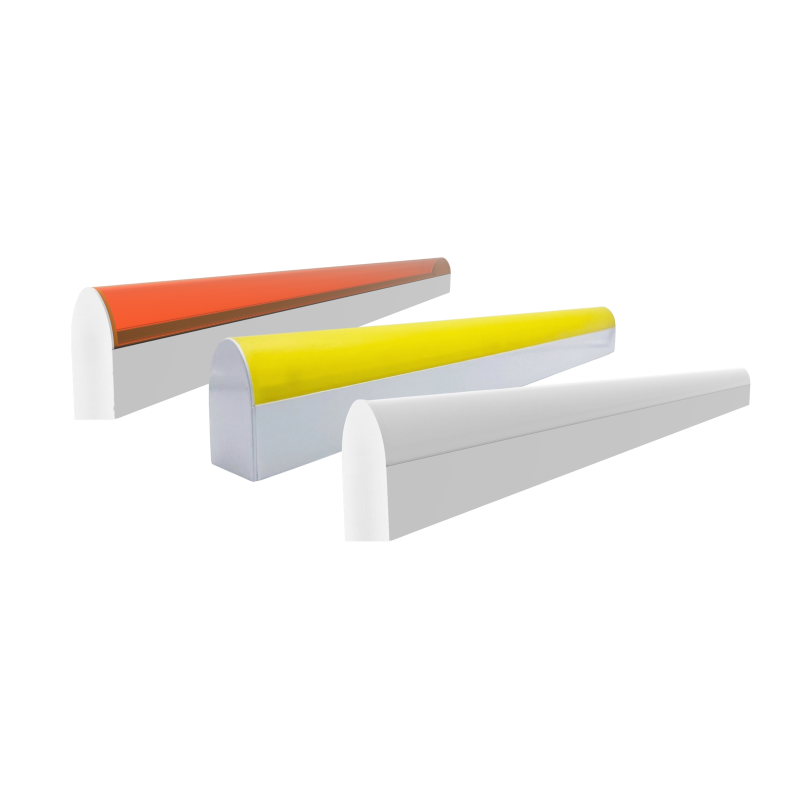

SLIM TEAR-DROP LED LIGHT
