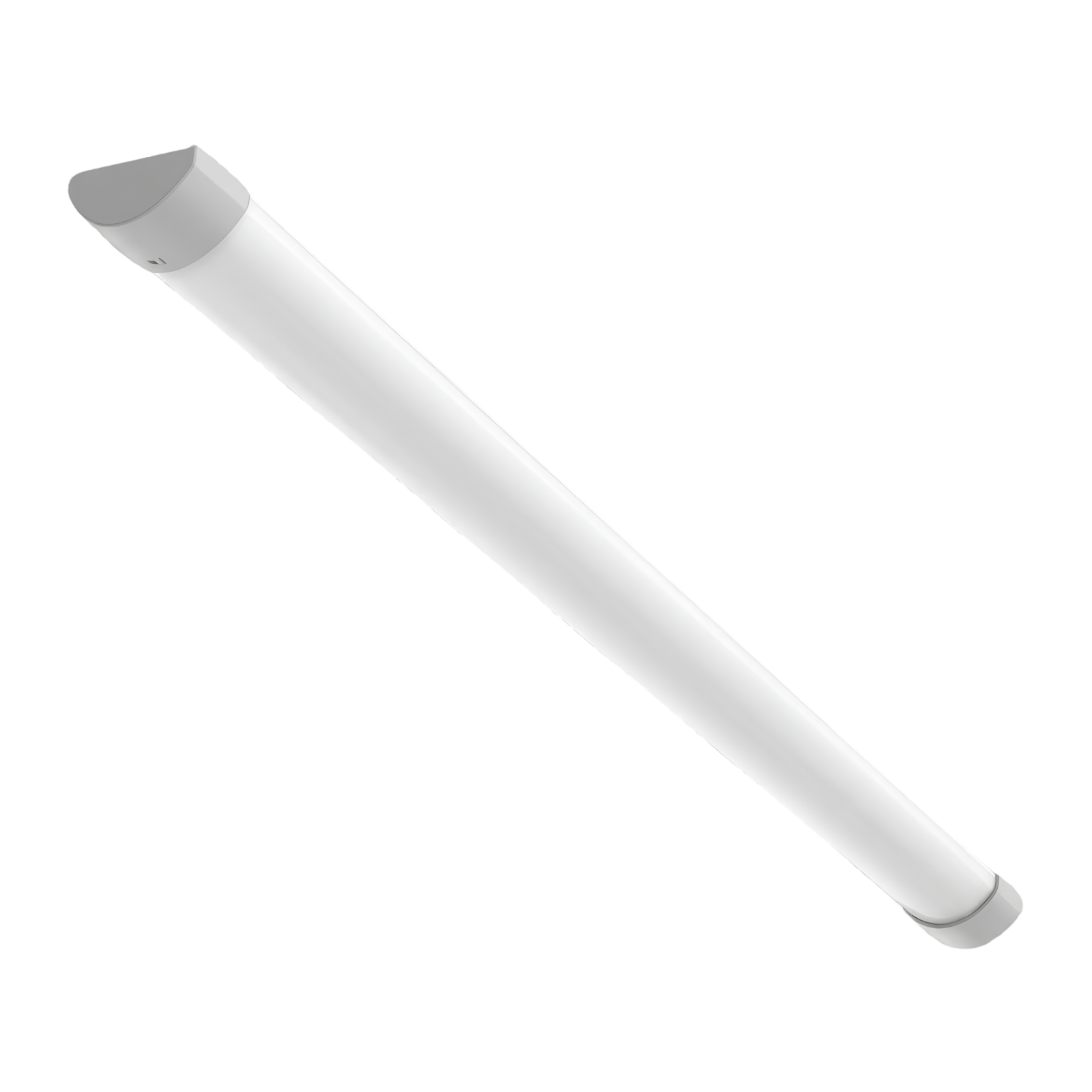

BG SERIES LED BATTEN HALFMOON LIGHT

  • PP-BG-HM-40

BG SERIES LED BATTEN HALFMOON LIGHT

Mô tả sản phẩm:

BG Series Semi-Circular LED Batten Light is an office lighting solution provided by Pi Power Solutions. Featuring a sleek, compact design and a wide 120° beam angle, it delivers uniform, bright illumination while staying highly energy-efficient. Available in 20W (0.6 m) and 40W (1.2 m) options, this light is ideal for offices, classrooms, and residential spaces. It boasts a lifespan of 30,000 hours and comes with a 2-year warranty from Pi Power Solutions.

Mã Model: PP-BG-HM-20; PP-BG-HM-40

Contact for Price

  • INFORMATION
  • PRODUCT DIMENSIONS
  • DOWNLOAD DOCUMENT

Special features

  • High luminous efficiency of 120 lm/w
  • Power factor more than 0.9
  • Superior Flicker-Free protection
  • Beam angle up to 120° optimizes illumination area.

Application

  • Office
  • Residential
  • Commercial

Dimension and Specification

Model number PP-BG-HM-20 PP-BG-HM-40
Dimension 600x59x47 mm 1200x59x47 mm
Power factor 20W 40W
Luminous flux 2400 lm 4800 lm
Luminous efficiancy 120 lm/W, 100 lm/W
Color rendering index Ra ≥ 80
Beam angle 110º
Working temperature - 20ºC - 40ºC
Color temperature 4000K/6500K
Power factor ≥ 0.9
Input Voltage 220 - 240 VAC
Ingress protection IP20
Lifespan 30.000 hrs



Download product IES file here:

BG Series LED Batten Halfmoon light 20W

BG SERIES LED Batten Halfmoon light 40W





Thông số kỹ thuật

Dimension (mm): 600*59*47; 1200*59*47

Power: 20W; 40W

Luminous flux: 2400 lm; 4800 lm

Luminous efficiancy: 120 lm/W, 100 lm/W

Color Rendering Index: Ra ≥ 80

Beam angle: 120°

Working temperature: - 20°C - 40°C

Color temperature: 4000K/6500K

Power factor: ≥ 0.9, (> 0.5)

Input Voltage: 220 - 240 VAC

Ingress protection: IP20

Lifespan: 30.000 hrs

Other products

T-BAR LED PANEL LIGHT

T-BAR LED PANEL LIGHT

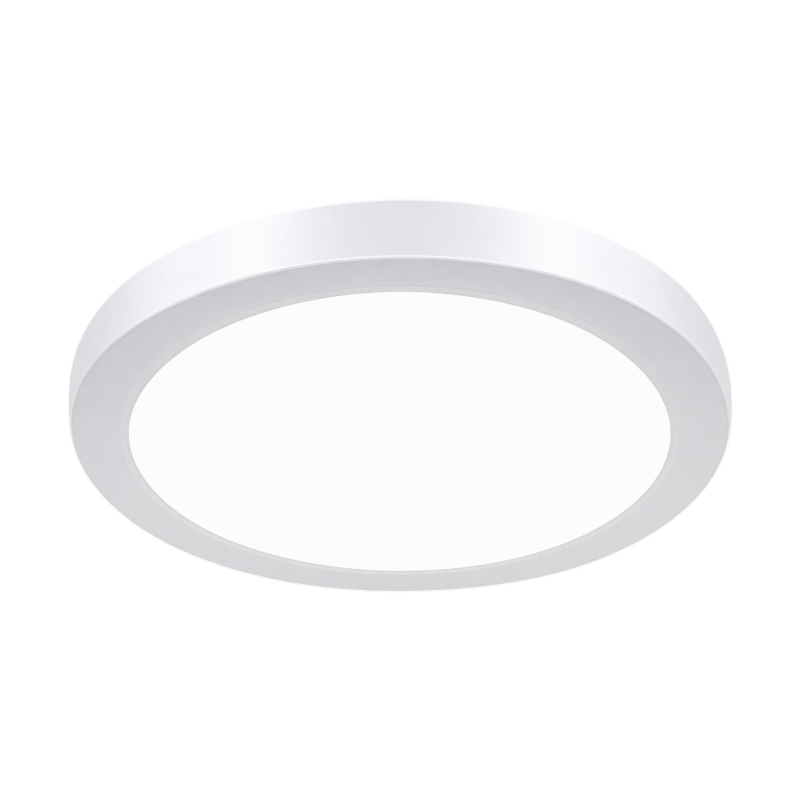

LED SURFACE DOWNLIGHT
