LED FLOODLIGHT HLE SERIES

  • PP-FL-HLE_3_V2
  • PP-FL-HLE_2_V3

LED FLOODLIGHT HLE SERIES

Mô tả sản phẩm:

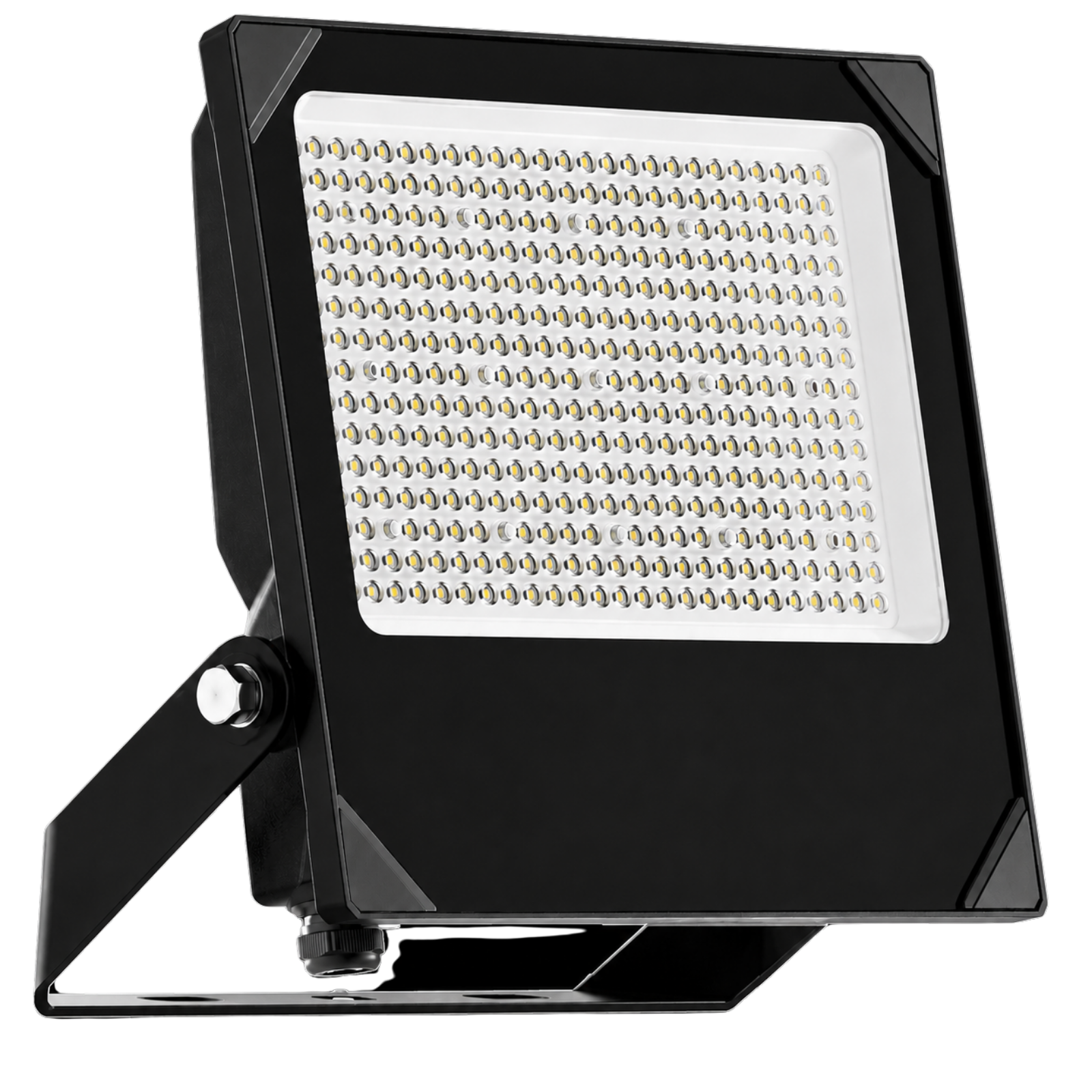

LED Floodlight HLE Series are high-quality lighting solutions supplied by Pi Power Solutions, featuring high luminous efficacy of up to 150 lm/W and a wide range of power capacities to suit diverse customer needs. Built for durability, the product boasts an IK08 impact resistance rating, C4 corrosion resistance class, and the ability to operate in extreme low temperatures down to -50°C. The product comes with an official 2-year warranty from Pi Power Solutions.

Mã Model: PP-FL-HLE-50; PP-FL-HLE-100; PP-FL-HLE-150; PP-FL-HLE-200

Contact for Price

  • INFORMATION
  • PRODUCT DIMENSIONS
  • DOWNLOAD DOCUMENT

Special features

  • 50W available with PIR sensor and 100-200W available with daylight sensor
  • 4KV surge protection (Optional 10KV/ 20KV)
  • Quick connection and installation with integrated junction box (Optional Loop in & Loop out).
  • C4 anti-corrosion protection / C5-M (Optional).
  • IP66 with IK08.

Application

  • Factory
  • Warehouse
  • Cold Storage



Dimension and Spectification

Model number PP-BFL-FC50 PP-BFL-FC100 PP-BFL-FC150 PP-BFL-FC200
Dimension 197x186x47 mm 356x252x53 mm 414x271x58 mm 462x302x62 mm
Power 50W 100W 150W 200W
Luminous flux 6000 lm 12500 lm 18750 lm 25000 lm
Luminous effifancy 150 lm/W
Color rendering index Ra ≥ 80
Beam angle 120º
Working temperature - 40ºC - 50ºC
Color temperature 3000K/4000K/5000K/6500K, SDCM ≤ 5
Power factor ≥ 0.9
Input Voltage 220 - 240 VAC
Ingress protection IP66
Lifespan 50.000 Hr



Thông số kỹ thuật

Dimension: 192x137x47mm; 305x233x60mm; 356x284x60mm

Power: 50W; 100W; 150W; 200W

Luminous flux: 7500 lm; 15000 lm; 22500 lm; 30000 lm

Luminous efficacy: 150 lm/W

Color Rendering Index:  Ra ≥ 80

Beam Angle: 120º

Working temperature: - 40°C - 50°C

Color temperature: 3000K / 4000K / 5000K / 6500K

Power Factor: ≥  0.9

Input Voltage:  220 - 240 VAC

Ingress protection:  IP65

Lifespan: 50000 Hr
