LED FLOOD LIGHT FCII SERIES

  • product2
  • PP
  • 1

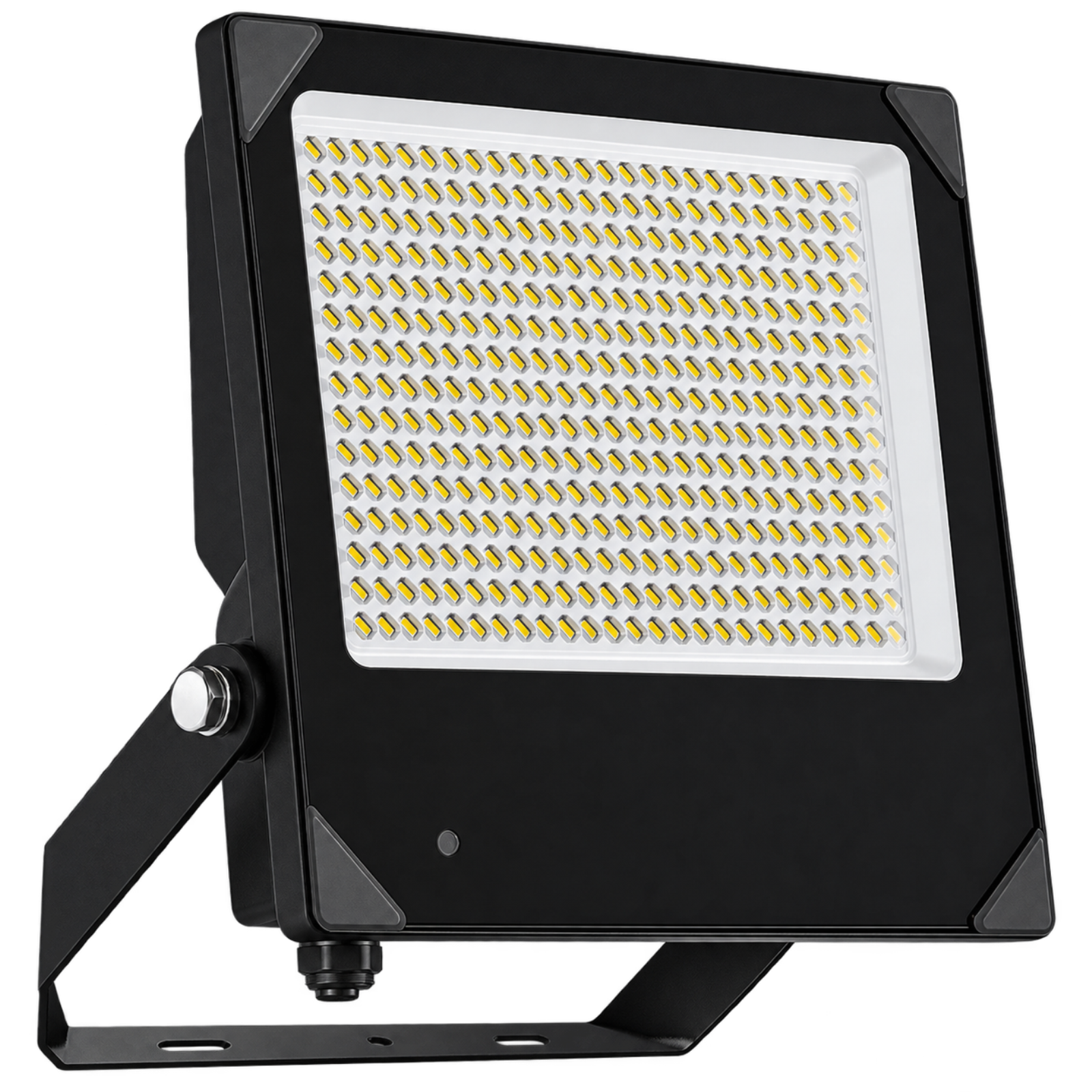

LED FLOOD LIGHT FCII SERIES

Mô tả sản phẩm:

LED flood light (FCII-TYPE), also known as outdoor LED headlights, is a type of lighting equipment manufactured with state-of-the-art technology, installation of high-tech LED chips, increase lighting performance and durability of equipment. Floodlights are the optimal outdoor lighting solution - lamps that are resistant to extreme weather conditions but can still work well.



Mã Model: PP-FL-FC100; PP-FL-FC150; PP-FL-FC200

Contact for Price

  • INFORMATION
  • PRODUCT DIMENSIONS
  • DOWNLOAD DOCUMENT

Special features

  • 50W available with PIR sensor and 100-200W available with daylight sensor
  • Professional LED driver with 4-6KV surge protection.
  • Die-cast aluminum housing ensures good thermal conductivity.
  • IP65 with die-cast aluminum heatsink and glued glass.
  • Protection class IK (shock resistance): IK07.

Application

  • Industrial zone
  • Warehouse
  • Construction

Dimension and Spectification

Model number PP-BFL-FCII50 PP-BFL-FCII100 PP-BFL-FCII150 PP-BFL-FCII200
Dimension 192x137x47 mm 305x233x60 mm 356x284x60 mm 356x285x60 mm
Power 50W 100W 150W 200W
Luminous flux 7500 lm 15000 lm 225000 lm 30000 lm
Luminous efficacy 150 lm/W
Color rendering index Ra ≥ 80
Beam angle 120º
Working temperature - 40ºC - 50ºC
Color temperature 3000K/4000K/5000K/6500K
Power factor ≥ 0.9
Input Voltage 200 - 240 VAC
Ingress protection IP65
Lifespan 50.000 Hr



Download IES file here



Thông số kỹ thuật

Size: L19Z*W137*H47; L305*W233*H60; L356*W284*H60; L356*W285*H60 mm

Power: 50W; 100W; 150W; 200W

Luminous flux: 7500 lm; 15000 lm; 22500 lm; 30000 lm

Luminous efficiency: 150lm/W

Color rendering index: Ra ≥ 80

Color temperature: 3000K/4000K/5000K/6500K, SDCM ≤ 5

Working temperature: - 40°C - 50°C

Power Factor: ≥ 0.9

Input Voltage: 220 - 240 VAC

Ingress protection: IP65

Lifespan: 50.000 Hr
