LED CLEANROOM MOUNTING PANEL LIGHT (SLIM VERSION) - den phong sach, den phong lanh, den kho lanh

LED CLEANROOM MOUNTING PANEL LIGHT (SLIM VERSION) - den phong sach, den phong lanh, den kho lanh

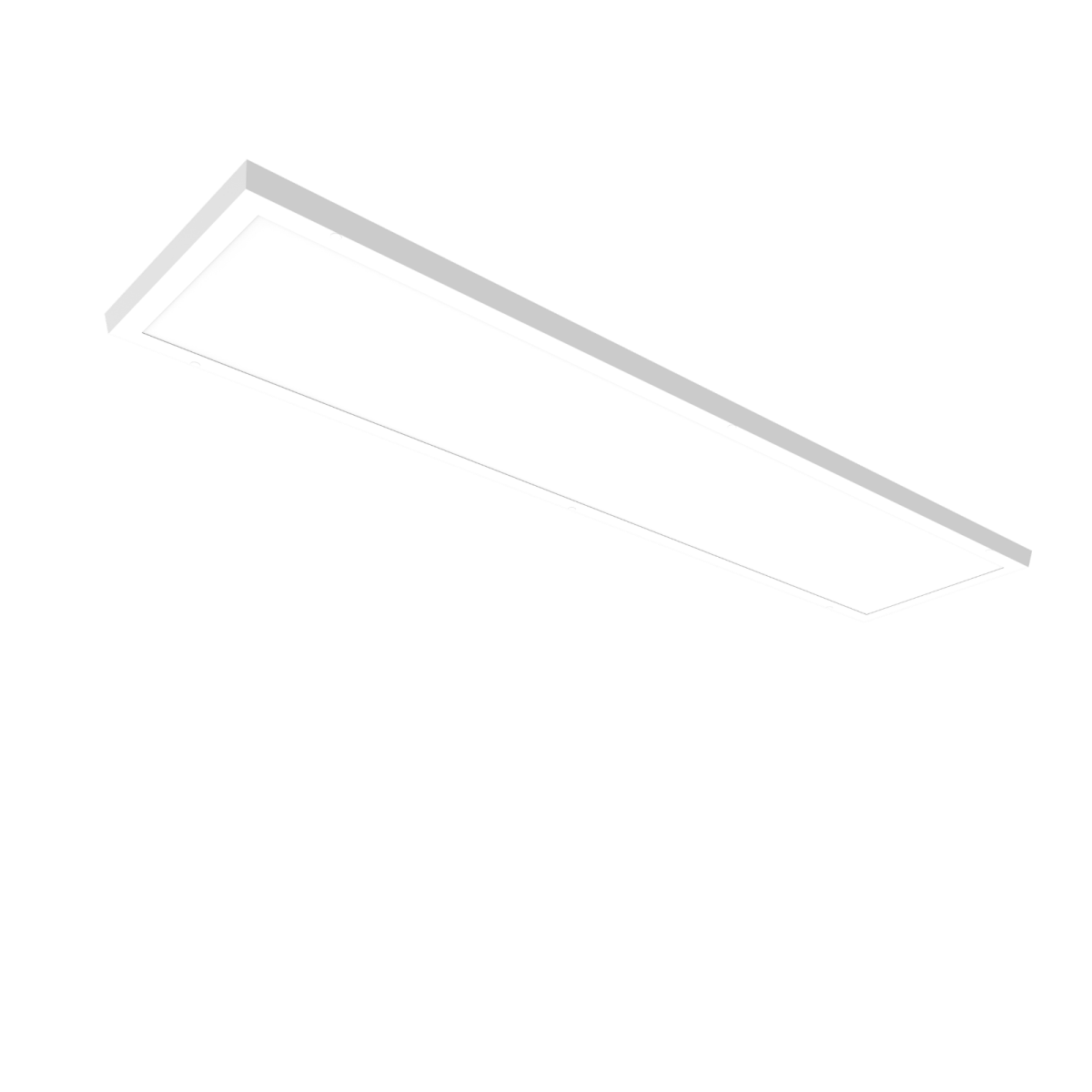

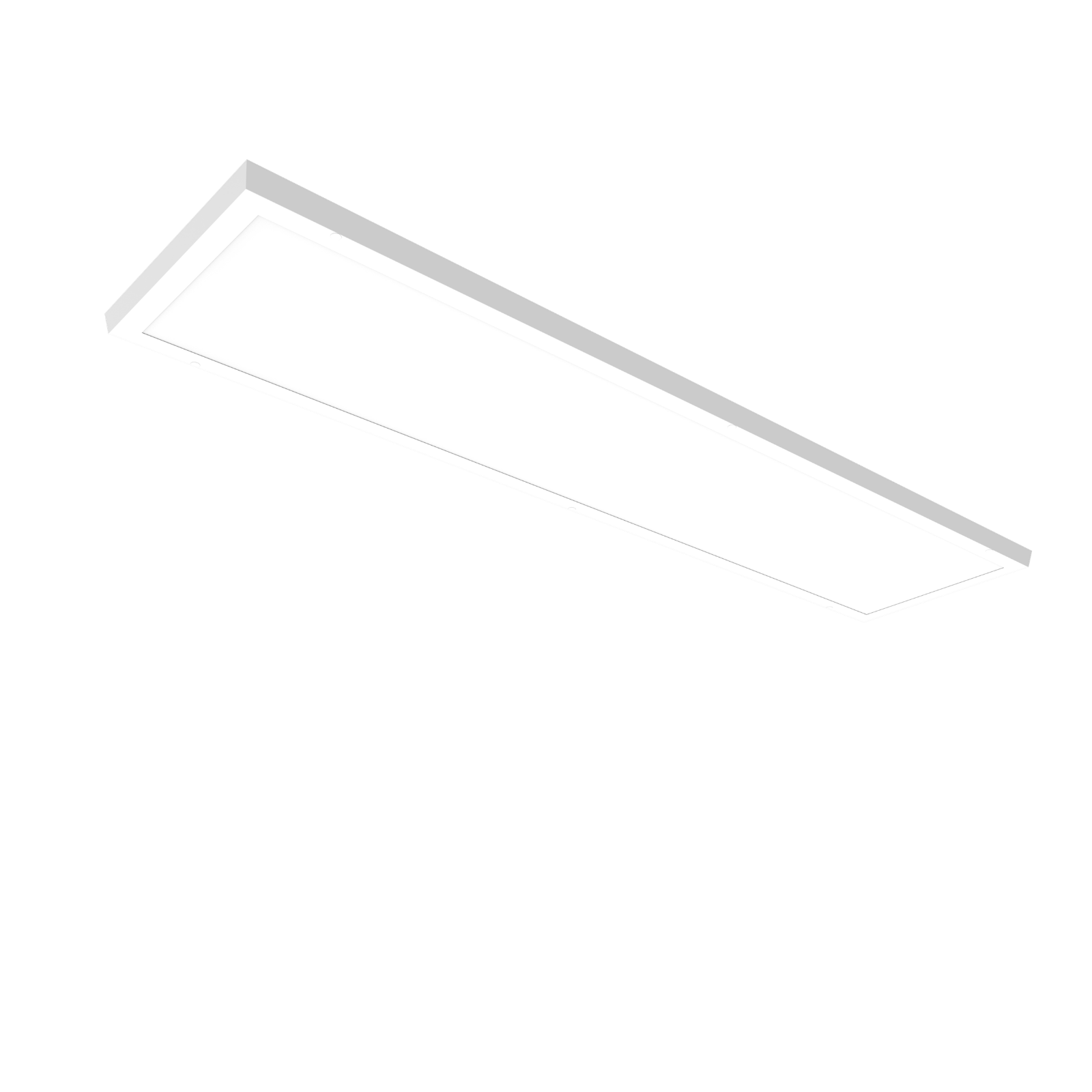

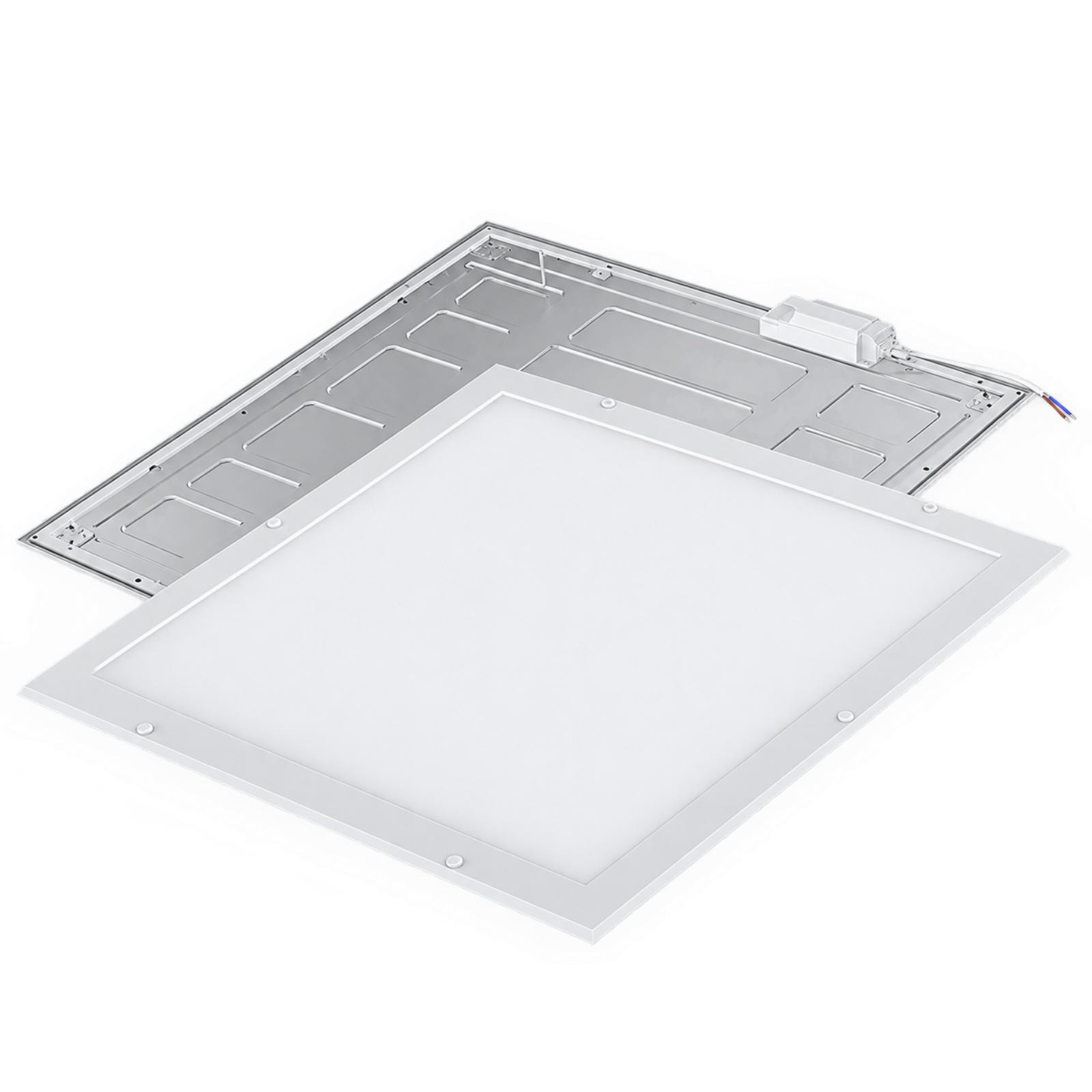

LED CLEANROOM MOUNTING PANEL LIGHT (SLIM VERSION)

  • mountingpanellight3
  • mountingpanellight4

LED CLEANROOM MOUNTING PANEL LIGHT (SLIM VERSION)

Mô tả sản phẩm:

LED Cleanroom mounting panel light (Slim version) is a high-quality lighting device from Pi Power Solutions, specialized for lighting environments with strict requirements such as laboratories, cold rooms, food manufacturing plants, etc. With high luminous efficiency, ultra-thin design, long service life up to 50,000 operating hours,LED Cleanroom mounting panel light is the perfect choice for installation in specialized areas. Products are genuine warranty by Pi Power Solutions (1 for 1 exchange) within 2-3 years.

Mã Model: PP-CPL-M6060-40 (Slim), PP-CPL-M30120-40 (Slim)

Contact for Price

  • INFORMATION
  • PRODUCT DIMENSIONS
  • DOWNLOAD DOCUMENT

Special features

  • Edge-lit technology enables ultra-slim dimensions 10mm
  • Powder-coated aluminum frame + back-plate galvanized sheets
  • Beveled edge desiign prevents dust accumulation and is easyt to clean, suitable for cleanroom enviroments
  • Light Guide Plate (LGP) PMMA + Diffuser PC, uniform light transmission quality
  • Easy installation with screw holes on the surface
  • IK07 impact resistance rating

Application

  • Medical & Health
  • Pharmaceutical
  • Electronics
  • Cosmetic
  • Biotech
  • Optics
  • Food & Beverage Factory

Dimension and specification

Model number PP-CPL-M6060-40 (Slim) PP-CPL-M30120-24 (Slim)
Dimension 637x637x10 mm 1237x337x10 mm
Power 40W
Luminous Flux 4800 lm
Luminous efficacy 120 lm/W
Color Rendering Index Ra ≥ 80
Beam Angle 110º
Working tempurature -20ºC - 45ºC
Color temperature 3000K/4000K/5000K/6000K/6500K
Power factor > 0.9
Input Voltage 200 - 240 VAC
Ingress protection IP54 (for front)
Lifespan 50.000 Hr



Thông số kỹ thuật

Dimension (mm): 637*637*10, 1237*337*10

Power (W): 40W

Luminous Flux (lm): 4800lm

Luminous efficacy (lm/W): 120lm/W

Color Renderung Index: Ra ≥ 80

Beam Angle: 110°

Working Temperature:  - 20°C - 40°C

Color Temperature (K): 3000K/4000K/5700K/6000K/6500K

Power Factor: > 0.9

Input Voltage: 220 - 240 VAC

Ingress Protection: IP54 (front face)

Lifespan: 50.000 Hr
