LED RECESSED BACKLIT PANEL LIGHT (T-BAR)

  • 24e9689496b38ed881b1d7af89b3848
  • ChatGPT Image 13_43_31 12 thg 8, 2026
  • ledrecessedpanelbacklit

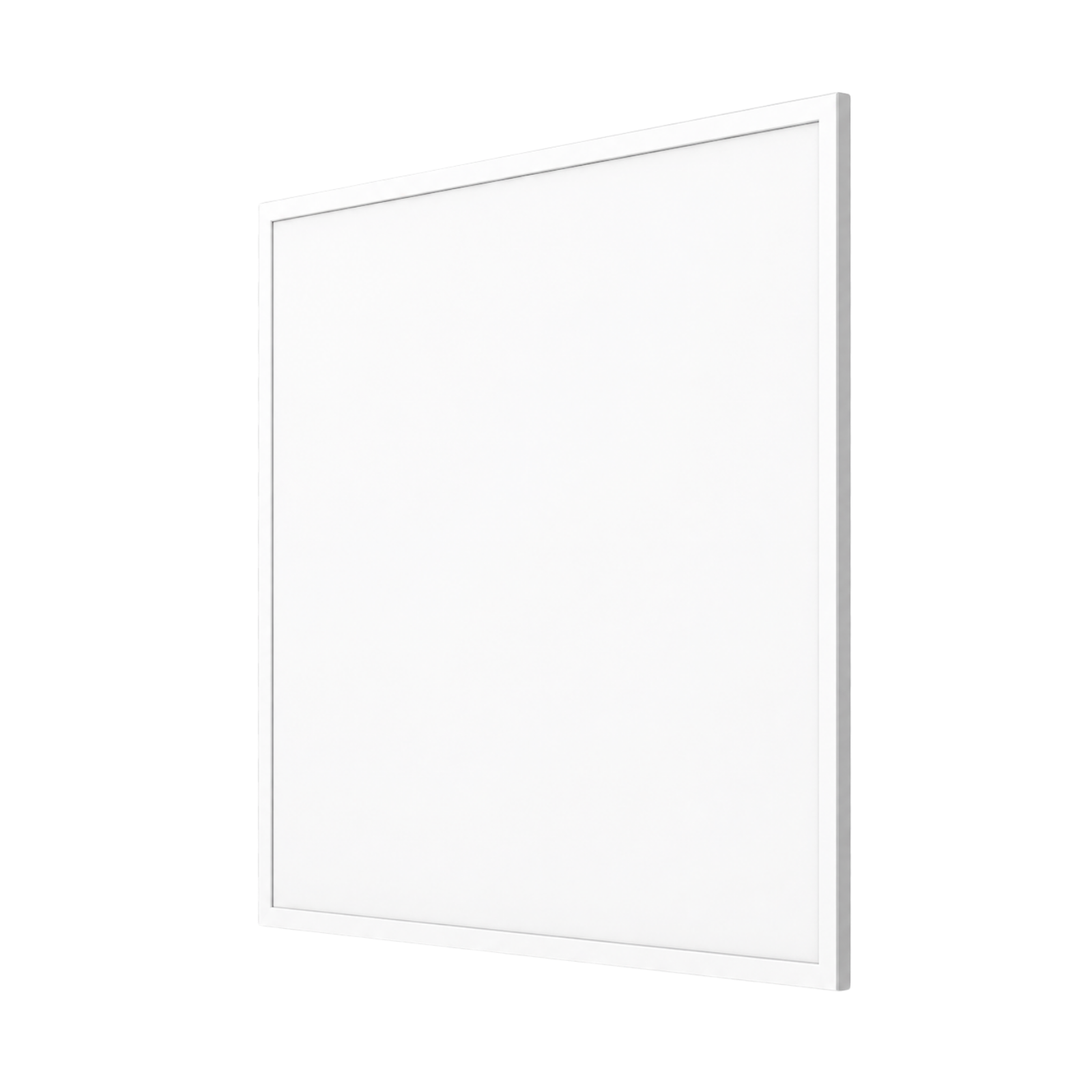

LED RECESSED BACKLIT PANEL LIGHT (T-BAR)

Mô tả sản phẩm:

LED Recessed Backlit Panel Light (T-Bar) is a high-quality lighting device of Pi Power Solutions, specialized for lighting environments with strict requirements such as laboratories, cold rooms, clean rooms, food manufacturing factories, etc. With high luminous efficiency thanks to innovative Backlit technology, long service life up to 50,000 hours, LED Recessed Backlit Panel Light (T-Bar) is the perfect choice for installation in specialized areas. Products are genuine warranty by Pi Power Solutions (1 for 1 exchange) from 2 to 3 years.

Mã Model: PP-PL-T6060-40; PP-PL-T30120-40

Contact for Price

  • INFORMATION
  • PRODUCT DIMENSIONS
  • DOWNLOAD DOCUMENT

Special features

  • Advanced back-lit LED technology
  • Flicker-free, no yellowing over time
  • Anti-drop LED chips with thermal compound coating
  • Line Step aluminium frames, lightwweight and aesthetically pleasing

Application

LED Recessed Backlit Panel Light (T-Bar) is used in

  • Medical & Health
  • Pharmaceutical
  • Electronics
  • Cosmetic
  • Biotech
  • Optics
  • Food & Beverage Factory

Dimension and specification

Model number PP-PL-T6060-40 PP-PL-T30120-40
Dimension 602x602x30 mm 295x1195x30 mm
595x595x30 mm
Power 40W
Luminous Flux 4000 lm 2000 lm
Luminous efficacy 120 lm/W 100 lm/W
Color Rendering Index  ≥ 80Ra
Beam angle 120º
Working temperature -20ºC - 40ºC
Color temperature 6000K/6500K
Power factor  ≥ 0.9
Input Voltage 200 - 240 VAC
Ingress protection IP20
Lifespan 50.000 Hr






Download our catalog here.

Thông số kỹ thuật

Dimension (mm): 602*602*30 or 595*595*30, 295*1195*30

Power (W): 40W

Luminious Flux (lm): 4000 lm or 2000 lm

Efficiency (lm/W): 120lm/W or 100lm/W

Color Rendering Index:  ≥ 80Ra

Beam Angle: 110°

Working Temp: - 20 - 40°C

Color Temp (K): 6000K/6500K

Power Factor: ≥ 0.9

Input Voltage : 200V - 240 VAC

Ingress Protection: IP20

Lifespan:  50.000 Hr
