LED RECESSED TOP-OPEN PANEL LIGHT

Mô tả sản phẩm:

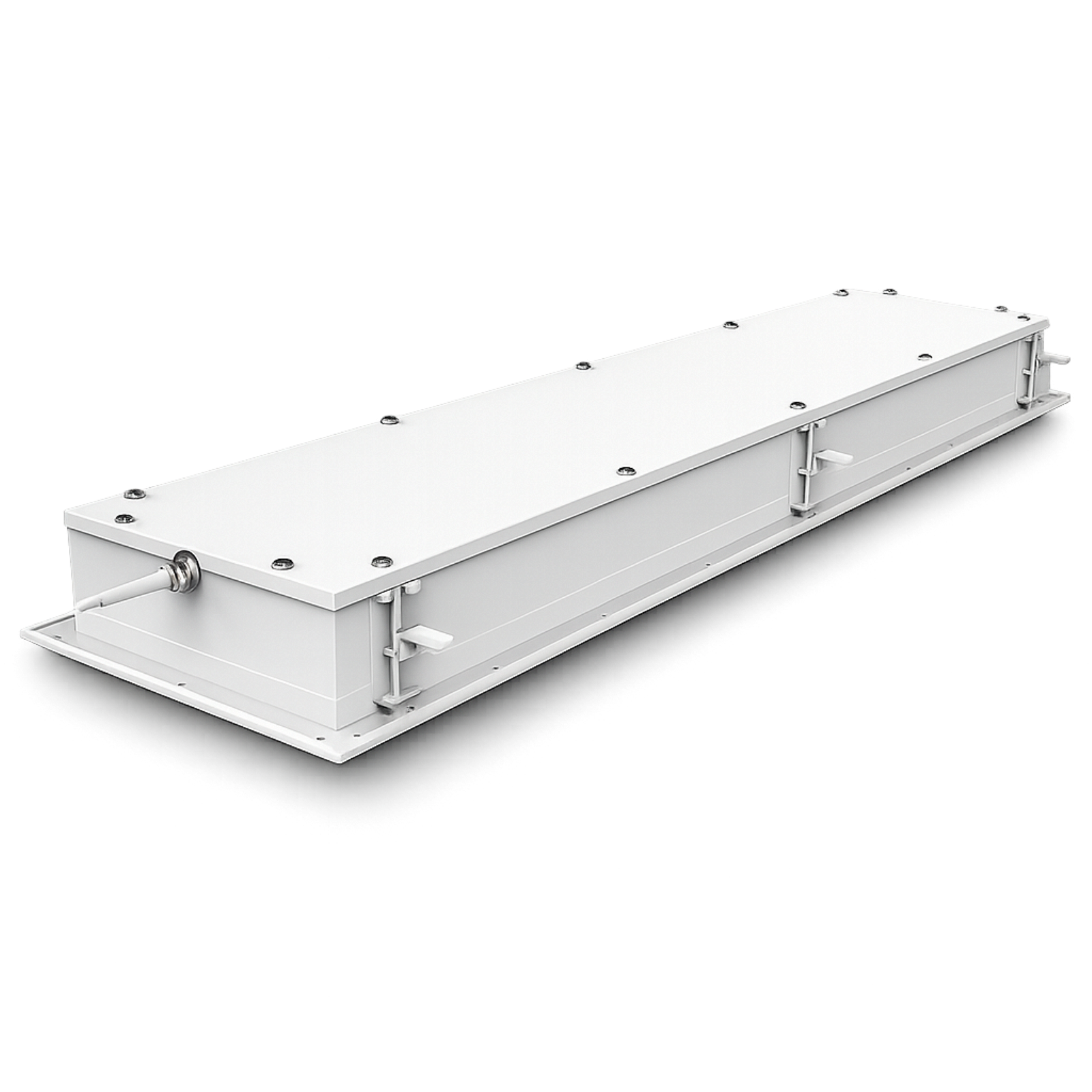

LED Recessed Top-open Panel light is a high quality dustproof lighting device from Pi Power Solutions, specialized for specialized lighting environments with strict requirements such as laboratories, cold rooms, cleanrooms manufacturing plants, etc. With its high luminous efficiency, long service life up to 50,000 hours and IP65 protection, LED Recessed Top-open Panel light is the perfect choice for installation in areas where it is required. High brightness, high humidity and lots of dirt. Products are genuine warranty by Pi Power Solutions (exchange 1 for 1) from 2 to 3 years.

Mã Model: PP-O002-CPLOT-26/30X60, PP-O002-CPLOT-40/60X60,PP-O002-CPLOT-40/30X120

Contact for Price

  • INFORMATION
  • PRODUCT DIMENSIONS
  • DOWNLOAD DOCUMENT

Special features

  • Top-open lid for easy maintenance
  • Adjustable mounting bracket for cilings thickness up to 8cm
  • Powder-coated aluminum frame + back-plate galvanized sheet
  • Advanced back-lit LED technology
  • Beveled edge design prevent dust accumulation and is easy to clean
  • PC diffuser/Tempered glass (option)
  • Particle Emission in Clean room Certification (Class I certified by ISO-14644-1)

Application

  • Medical & Health
  • Pharmaceutical
  • Electronics
  • Cosmetic
  • Biotech
  • Optics
  • Food & Beverage Factory



Dimension

Model number PP-O002-CPLOT-26/30X60 PP-O002-CPLOT-40/60X60 PP-O002-CPLOT-40/30X120
595x295x100 mm 595x595x100 mm 1195x295x100 mm

Download our catalog Here.

Thông số kỹ thuật

Dimension (mm): 595*595*100; 295*1195*100; 595*295*100

Power (W): 40W (Optional: 26W)

Luminous FLux (lm): 3120lm hoặc 4800lm

Luminous efficacy (lm/W): 120lm/W

Color Rendering Index:  >80Ra

Beam Angle: 110°

Working temperature: - 20°C - 40°C

Color Temperature (K): 3000K ~ 6000K

Power factor: > 0.9

Input Voltage: 220V - 240VAC

Ingress Protection: IP65

Lifespan: 50.000 Hr
