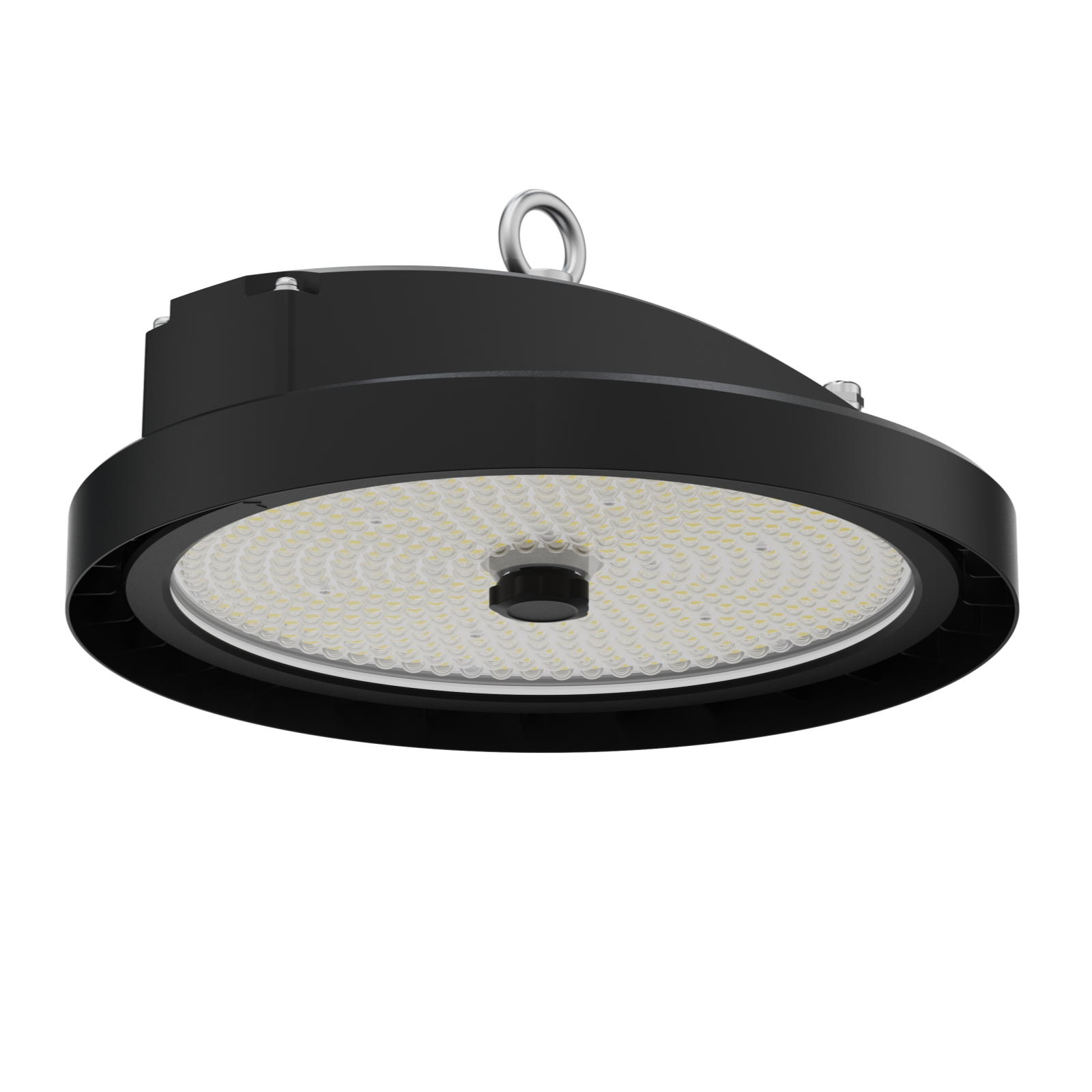

LED SUPER HIGHBAY LIGHT HI-TYPE

  • pp-o001-HBHI-200

LED SUPER HIGHBAY LIGHT HI-TYPE

Mô tả sản phẩm:

The Highbay Hi-Type LED Light by PI Power Solutions is a premium industrial lighting solution engineered for extreme operating environments. Equipped with 5mm chemical-resistant tempered glass, ammonia (NH3) corrosion protection, and a specialized thermal structure, it operates continuously at temperatures up to 70°C. Featuring a luminous efficacy of up to 185 lm/W and selectable wattage (100W–200W), it is the ultimate choice for heavy-industrial plants, livestock facilities, and chemical manufacturing hubs

Mã Model: PP-O001-HBHI-200

Contact for Price

  • INFORMATION
  • PRODUCT DIMENSIONS
  • DOWNLOAD DOCUMENT

Special features



  • Withstand harsh enviroments up to 70°C
  • High luminous efficacy up to 185 lm/W
  • Power selectable from 100 W - 200 W
  • Specially engineered structure for sustained high-temperature operation
  • 5 mm tempered glass: Heat-resistant and chemical-resistance
  • Anti-amonia

Application

  • Factory
  • Warehouse
  • Khu vực công cộng
  • Dây chuyền lắp ráp

Dimension and specification

Model number PP-O001-HBHI-200
Dimension D400x184 mm
Power 100 W -  200 W
Luminous flux 18500 lm - 37000 lm
Luminous efficancy 185 lm/w
Color Rendering Index Ra ≥ 80
Beam angle  120°
Working temperature  - 40°C - 70°C
Color temperature 5700K/6000K/6500K
Power factor 100 - 277 VAC
Input Voltage ≥ 0.9
Ingress protection IP66
Lifespan 50.000 Hr



Download document here.

Thông số kỹ thuật

Dimension (mm): Ø400*184

Power (W): 100 W - 200 W

Luminious Flux (lm): 18500 lm - 37000 lm

Efficiency (lm/W): 185 lm/W

Color Temp (K): 5700K/6000K/6500K

CRI: Ra ≥ 80

Beam angle: 120°

Working Temp: - 40°C - 70°C

Power Factor: ≥ 0.9

Input Voltage: 120V - 277 VAC

Ingress protection: IP66K

Life Spend: 50.000 Hr

Other products

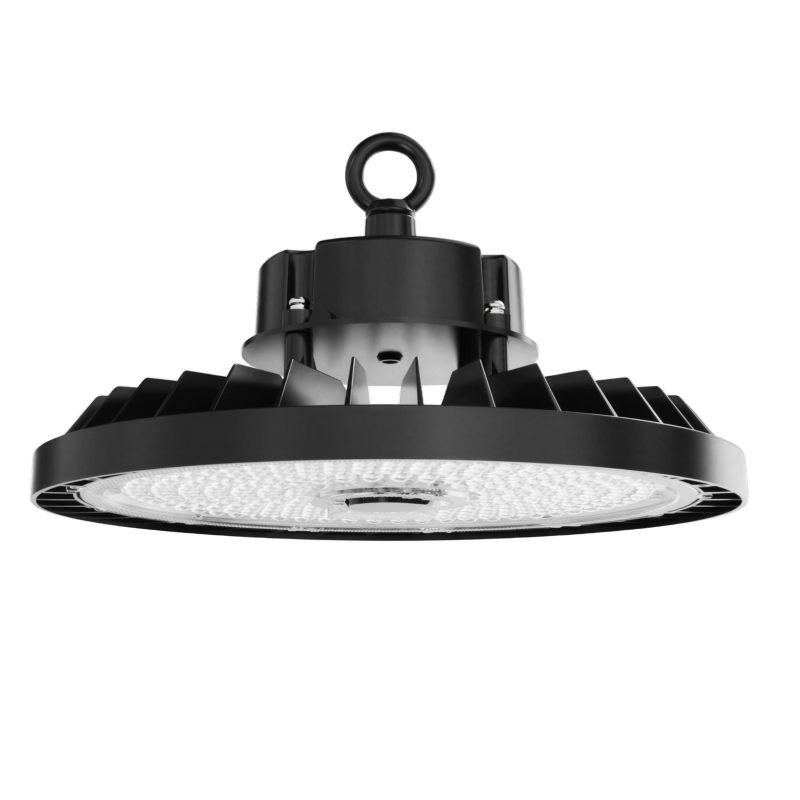

COLD STORAGE DSC-TYPE HIGHBAY LIGHT

COLD STORAGE DSC-TYPE HIGHBAY LIGHT

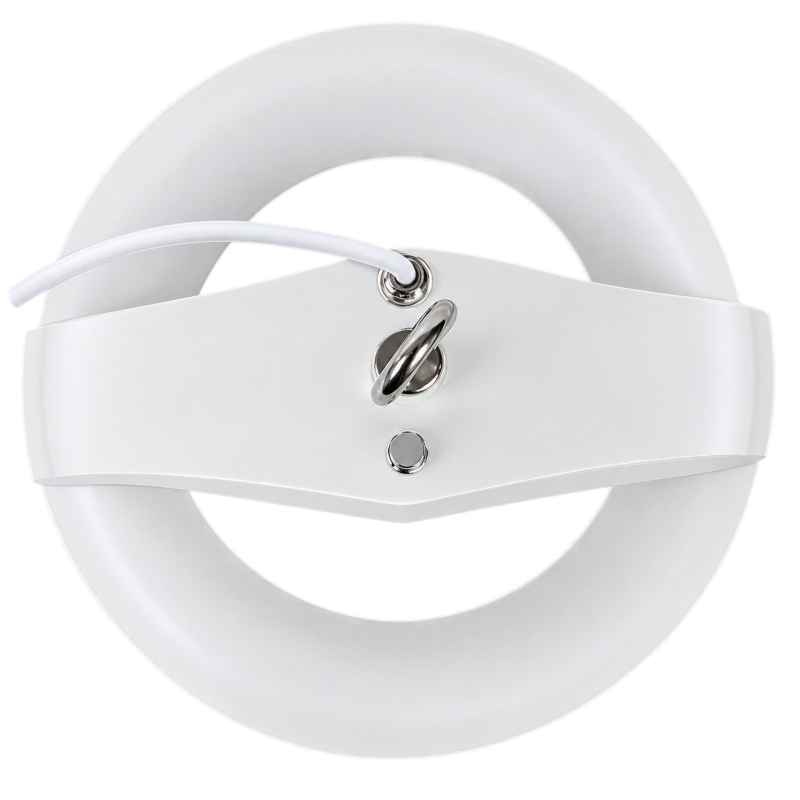

LED HIGHBAY F&B-TYPE
