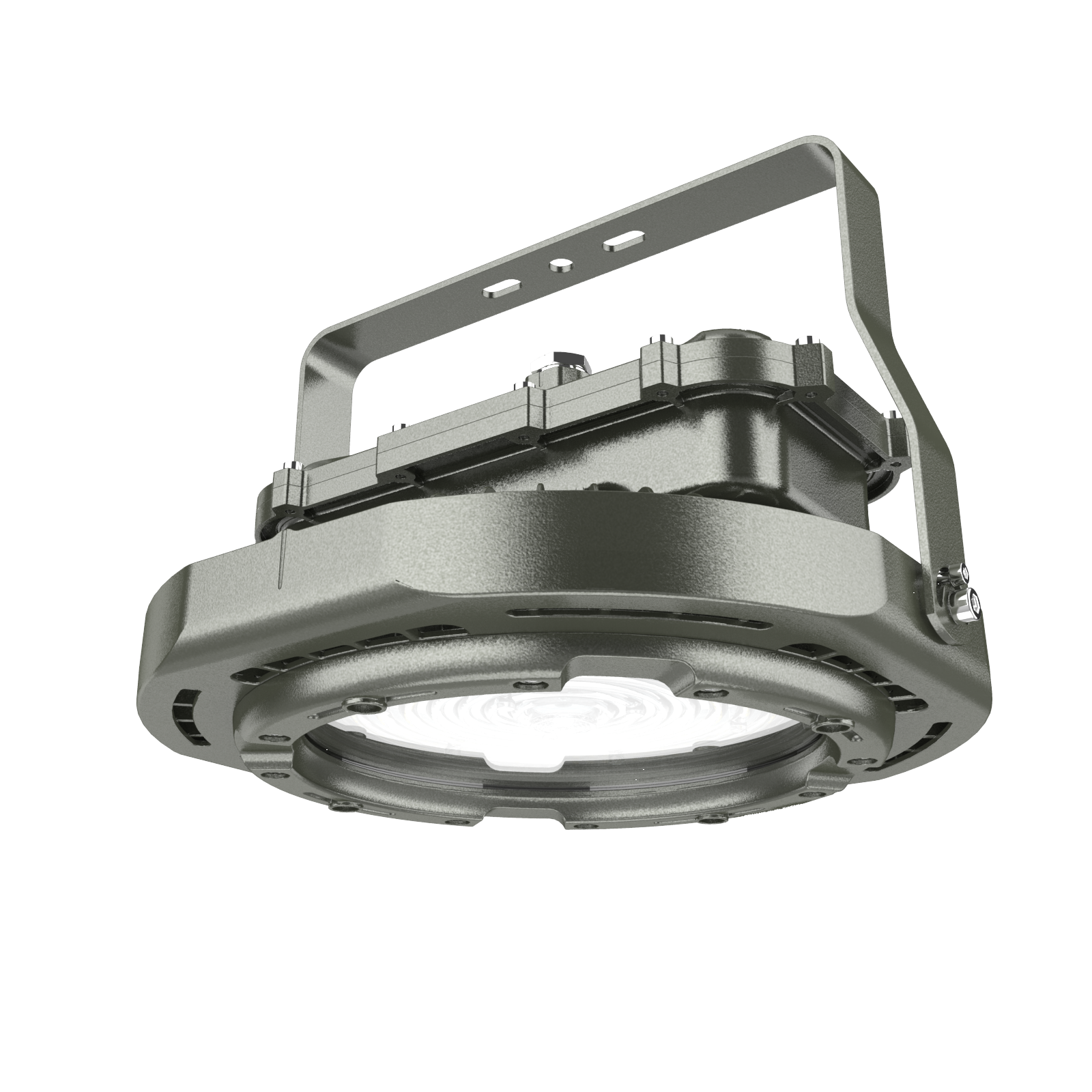

HIGHBAY EXPLOSION PROOF LIGHT (MODEL EX8231)

  • ex8231_2
  • ex8231

HIGHBAY EXPLOSION PROOF LIGHT (MODEL EX8231)

Mô tả sản phẩm:

Highbay explosion proof light (Model EX8231) is a high quality is a lighting product by Pi Power Solutions specially designed for harsh industrial environments and high-risk hazardous locations, holding international explosion-proof certifications ATEX II 2 G Ex db IIC T6 Gb / II 2 D Ex tb IIC T80°C Db for safe operation in Zone 1, Zone 2 (gas) and Zone 21, Zone 22 (combustible dust) hazardous areas, featuring a WF2-level anti-corrosion rating, an optical PC shade providing high light transmittance of 95% – 98%, and an integrated die-cast thermal design that delivers superior heat dissipation efficiency and outstanding durability.

Mã Model: PP-O007-EX8231-80; PP-O007-EX8231-100

Contact for Price

  • INFORMATION
  • PRODUCT DIMENSIONS
  • DOWNLOAD DOCUMENT

Special features

  • The anti-corrosion grade can reach WF2.
  • Optical lampshade PC material, light transmittance can reach 95% - 98%.
  • Heat disipation design, it has excellent heat conduction and heat dissipation perfommance.
  • ATEX certificates II 2 G Ex db IIC T6 Gb/ II 2 D Ex tb IIC T80° Db used in cho Zone 1 và Zone 2 hoặc Zone 21 và Zone 2 areas.

Application

  • Chemical Industry
  • Mining Industry
  • Agricultural Processing
  • Oil, Gas & Petrochemical Industry





Dimension and specification

Model number PP-O7007-EX8267-80 PP-O007-EX8231-100
Dimension 305x285x250 mm 435x440x255 mm
Power 80 W 100 W
Luminous Flux 9600 lm 12000 lm
Luminous efficacy 120 lm/W
Color Rendering Index  Ra ≥ 75
Beam angle 120º 90º
Working temperature -20ºC - 50ºC
Color temperature 6000K/6500K
Power factor  ≥ 0.9
Input Voltage 100 - 240 VAC
Ingress protection IP66
Lifespan 50.000 Hr
Explosion-proof standard Exd IIC T6 Gb


Download our catalog here.

Thông số kỹ thuật

Dimension (mm): 305*285*250, 435*440*255

Power: 80W/100W

Luminious flux: 9600lm/12000lm

Luminous efficancy (lm/W): 120lm/W

Color Rendering Index: Ra ≥ 75

Beam angle: 90°/120°

Working temperature: - 20 - 50°C

Color temperature: 6000K/6500K

Power Factor: ≥ 0.9

Input Voltage : 100V - 270 VAC

Ingress Protection: IP66

Lifespan:  50.000 Hr

Explosion-proof standard: Ex demb IIC Gb
