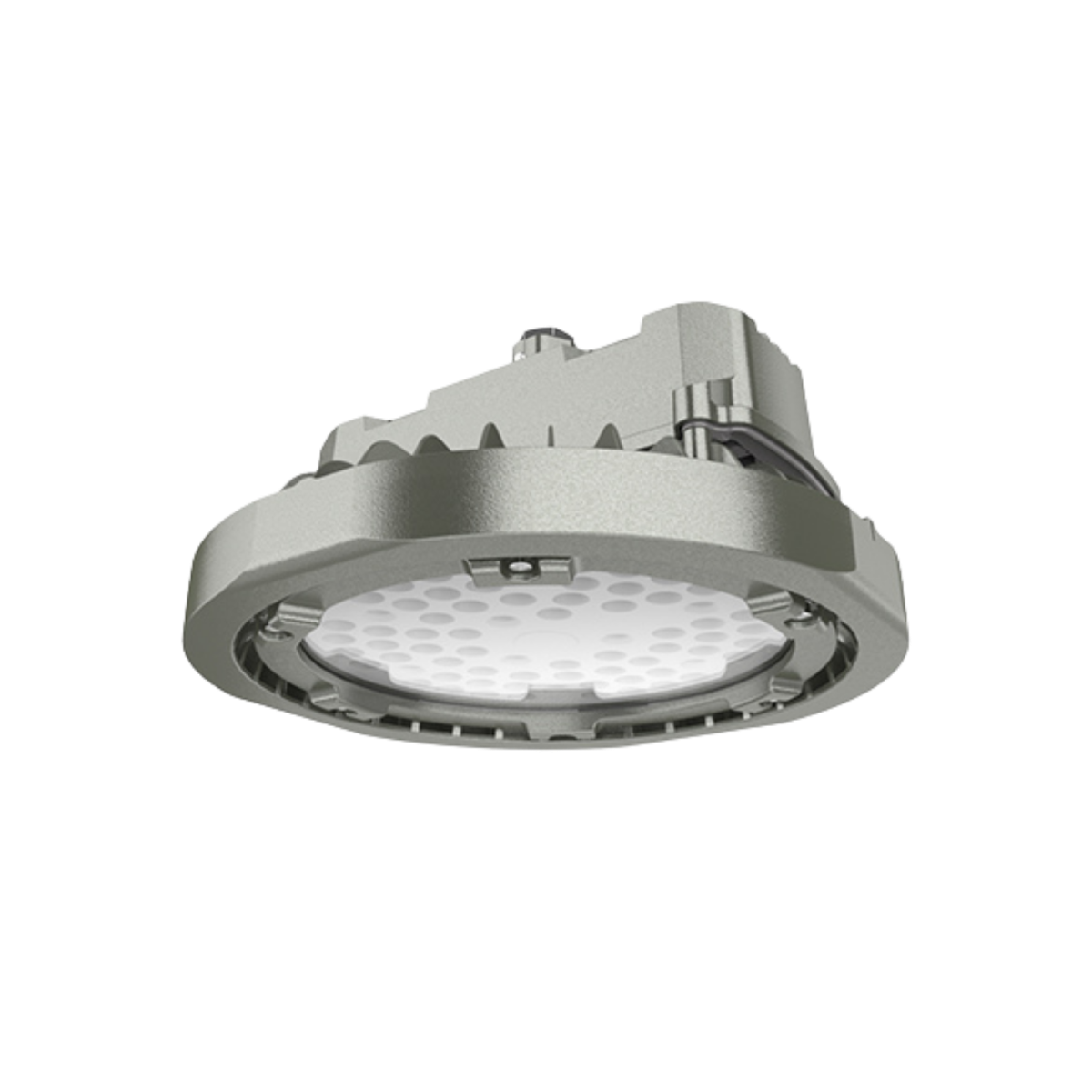

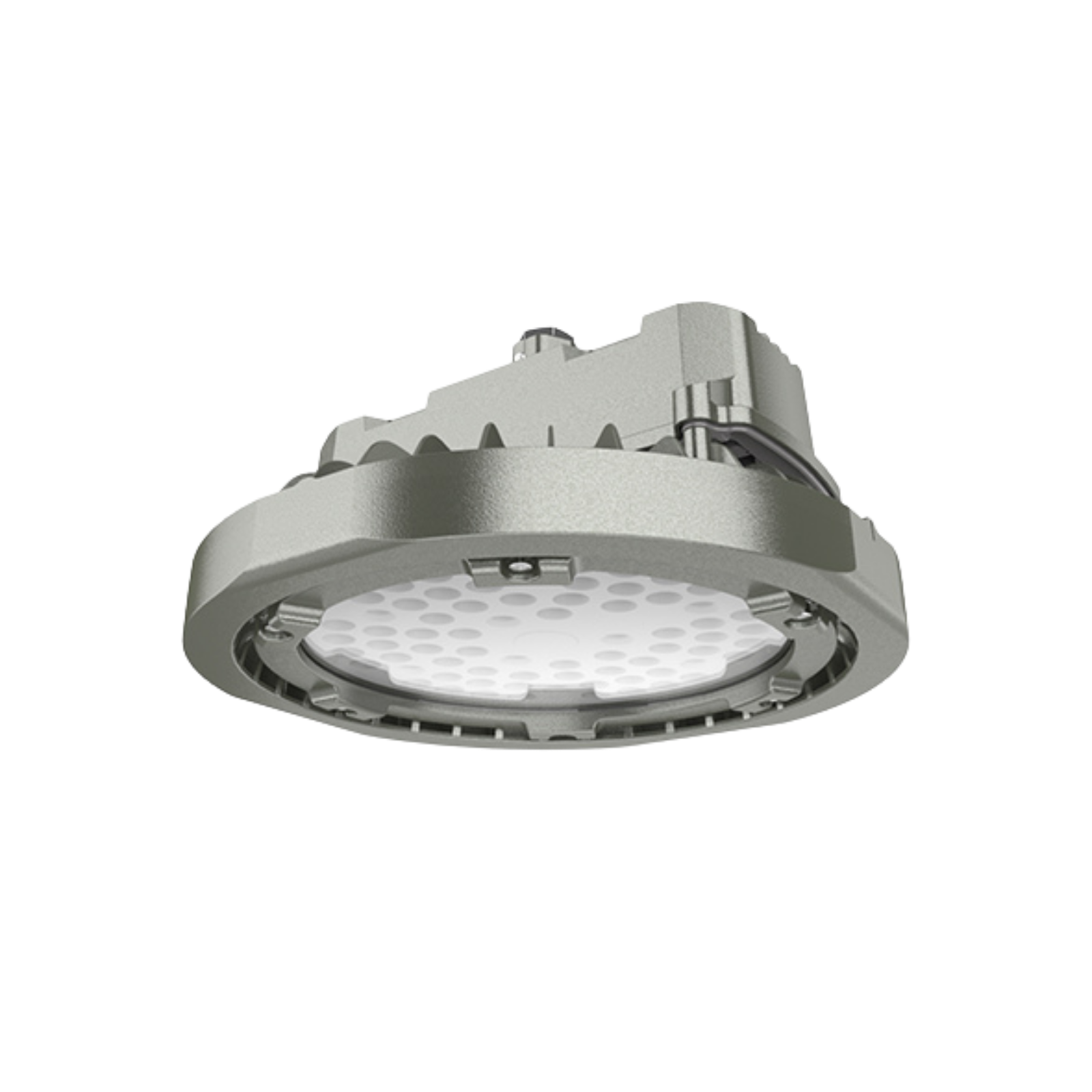

HIGHBAY EXPLOSION PROOF LIGHT (MODEL EX8267)

  • OEX_HB_3
  • OEX_HB_2

HIGHBAY EXPLOSION PROOF LIGHT (MODEL EX8267)

Mô tả sản phẩm:

Highbay Explosion Proof Light (Model EX8267) lights are high quality explosion-proof lighting fixtures by Pi Power Solutions, specially engineered for harsh operating environments with high risks of fire and explosion. Featuring the Ex db IIC T6 Gb explosion-proof rating and an IP66 ingress protection class, this product guarantees absolute safety when operating in chemical plants, offshore oil rigs, fuel storage facilities, woodworking shops, and areas with high concentrations of flammable fine dust or gas.

Mã Model: PP-O7007-EX8267-80; PP-O007-EX8267-100; PP-O007-EX8267-150

Contact for Price

  • INFORMATION
  • PRODUCT DIMENSIONS
  • DOWNLOAD DOCUMENT

Special features

  • The anti-corrosion grade can reach WF2
  • Optical lampshade PC material, light transmittance can reach 95% - 98%
  • Heat dissipation design, it has excellent heat conduction and heart dissipation performance
  • ATEX certificates ATEX Ex db IIC T6 Gb, used in Zone 2, Zone 21 and Zone 22 areas.

Application

  • Chemical Industry
  • Mining Industry
  • Agricultural Processing
  • Oil, Gas & Petrochemical Industry

Dimension and specification

Model number PP-O7007-EX8267-80 PP-O007-EX8267-100 PP-O007-EX8267-150
Dimension D327.8x155.2 mm D327.8x155.2 mm D327.8x155.2 mm
Power 80 W 100 W 150 W
Luminous Flux 9600 lm 12000 lm 18000 lm
Luminous efficacy 120 lm/W
Color Rendering Index  Ra ≥ 80
Beam angle 120º
Working temperature -20ºC - 50ºC
Color temperature 6000K/6500K
Power factor  ≥ 0.9
Input Voltage 100 - 240 VAC
Ingress protection IP66
Lifespan 50.000 Hr
Explosion-proof standard Ex demb IIC T6 Gb


Download our catalog here.

Thông số kỹ thuật

Dimension (mm): Ø327.8*155.2, Ø327.8*155.2, Ø327.8*175.7

Power: 80W/100W/150W

Luminious flux: 9600lm/12000lm/18000lm

Luminous efficancy (lm/W): 120lm/W

Color Rendering Index: Ra ≥ 75

Beam angle: 120°

Working temperature: - 20 - 50°C

Color temperature: 6000K/6500K

Power Factor: ≥ 0.9

Input Voltage : 100V - 240 VAC

Ingress Protection: IP66

Lifespan:  50.000 Hr

Explosion-proof standard: Ex demb IIC T6 Gb

Other products

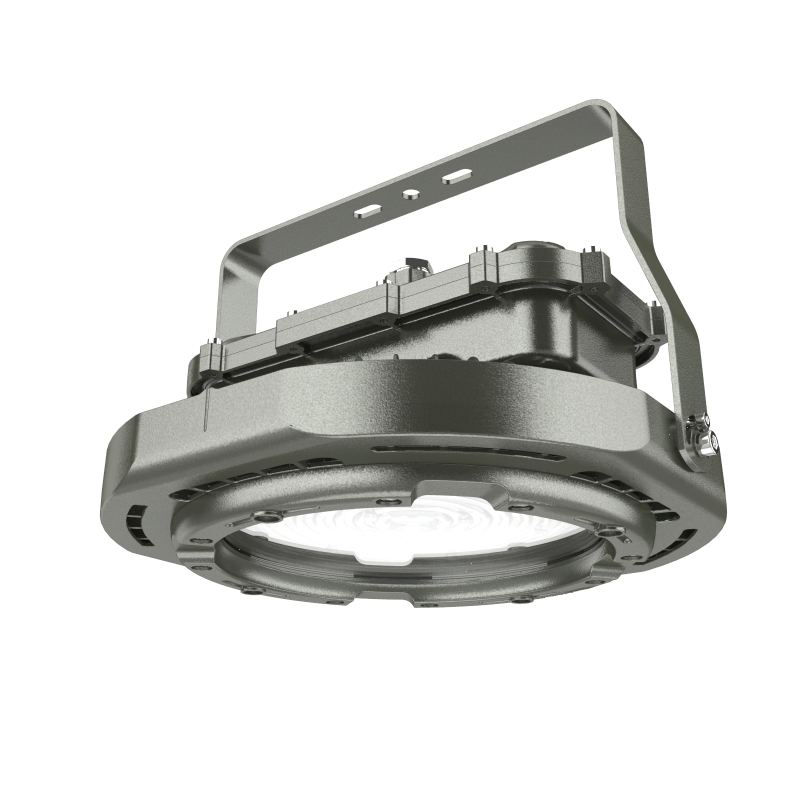

HIGHBAY EXPLOSION PROOF LIGHT (MODEL EX8231)
