LED SURFACE DOWNLIGHT - den phong sach, den phong lanh, den kho lanh

LED SURFACE DOWNLIGHT - den phong sach, den phong lanh, den kho lanh

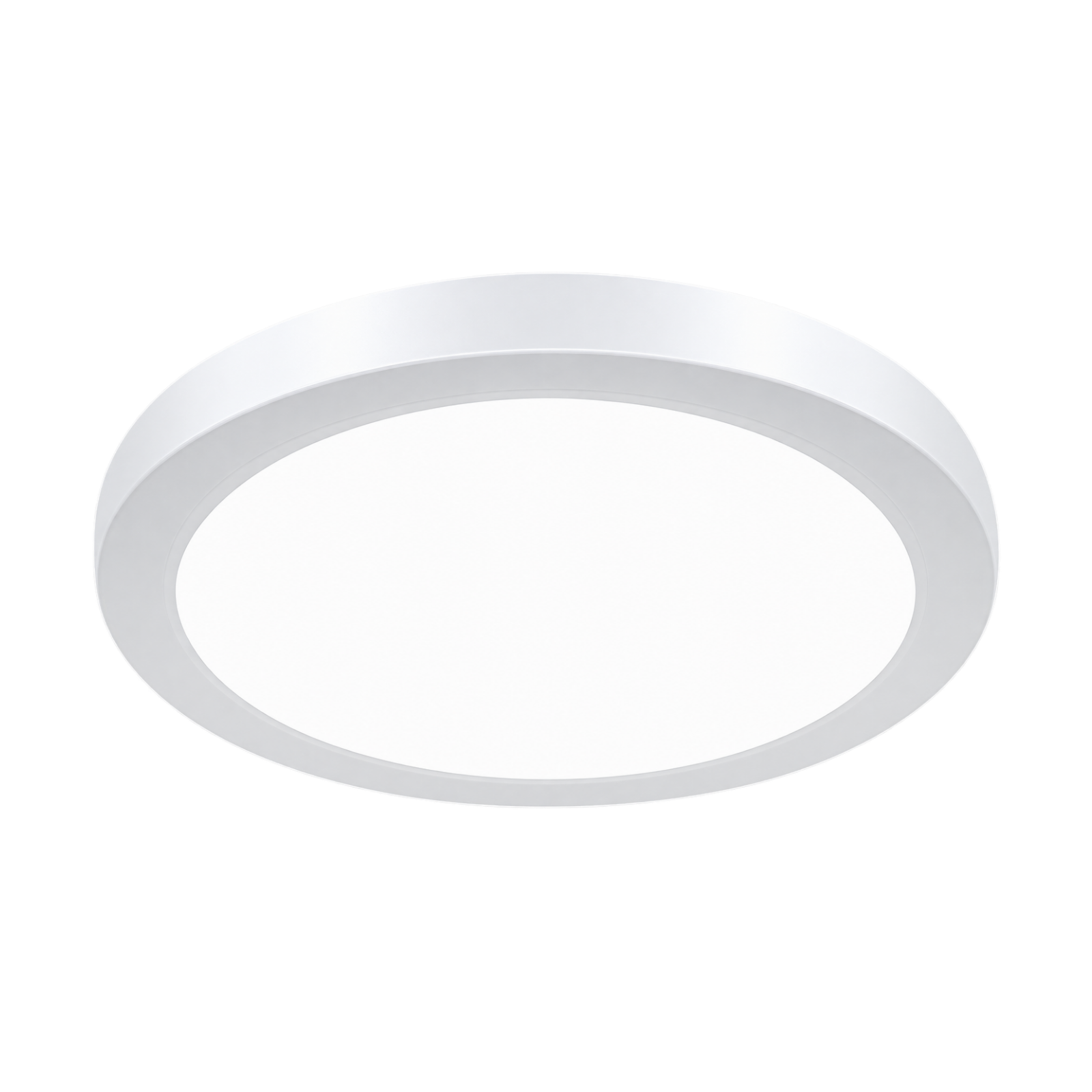

LED SURFACE DOWNLIGHT

LED SURFACE DOWNLIGHT

Mô tả sản phẩm:

Surface Downlight LED Light by Pi Power Solutions is a high-quality, energy-efficient lighting fixture designed to brighten any space. Available in two power options 18W (Ø230mm) and 24W (Ø300mm) - with three color temperature modes (3000K/4000K/6500K), it easily adapts to your lighting needs. Featuring true-to-life color rendering, a wide 120º beam angle, a long lifespan of up to 30,000 hours, and a 2-year warranty, this surface-mounted LED downlight delivers both reliability and peace of mind.

Mã Model: PPL-O003-MDL -18; PP-O003-MDL-24

Contact for Price

  • INFORMATION
  • PRODUCT DIMENSIONS
  • DOWNLOAD DOCUMENT

Special feature

  • High power factor greater than 0.9
  • Luminous efficacy up to 100 lm/W
  • Lifespan up to 30.000 hours.

Application

  • Office
  • Commercial
  • Residential

Dimension and Specification

Product model PP-O003-MDL-18 PP-O003-MDL-24
Dimension D230x25 mm D300x25
Power 18 W 24W
Luminous flux 1800 lm 2400 lm
Luminous efficacy 100 lm/W
Color Rendering Index  Ra ≥ 80
Beam angle 120°
Working temperature - 20°C - 40C
Color temperature 3000K/4000K/6500K
Power factor  ≥ 0.9
Input voltage 190 - 277 VAC
Ingress protection  IP40
Lifespan 30.000 Hrs



Download product IES file here.

Thông số kỹ thuật

Dimension (mm): Ø230*25, Ø300*25

Power: 18 W; 24 W

Luminous Flux: 1800 lm; 2400lm

Luminous efficancy: 100 lm/W

Color Rendering Index: Ra ≥ 80

Beam angle: 120º

Working temperature: - 20°C - 40°C

Color temperature: 3000K/400K/6500K

Power factor: ≥ 0.9

Input Voltage: 190 - 277 VAC

Ingress protection: IP40

Lifespan: 30.000 hrs

Other products

T-BAR LED PANEL LIGHT

T-BAR LED PANEL LIGHT

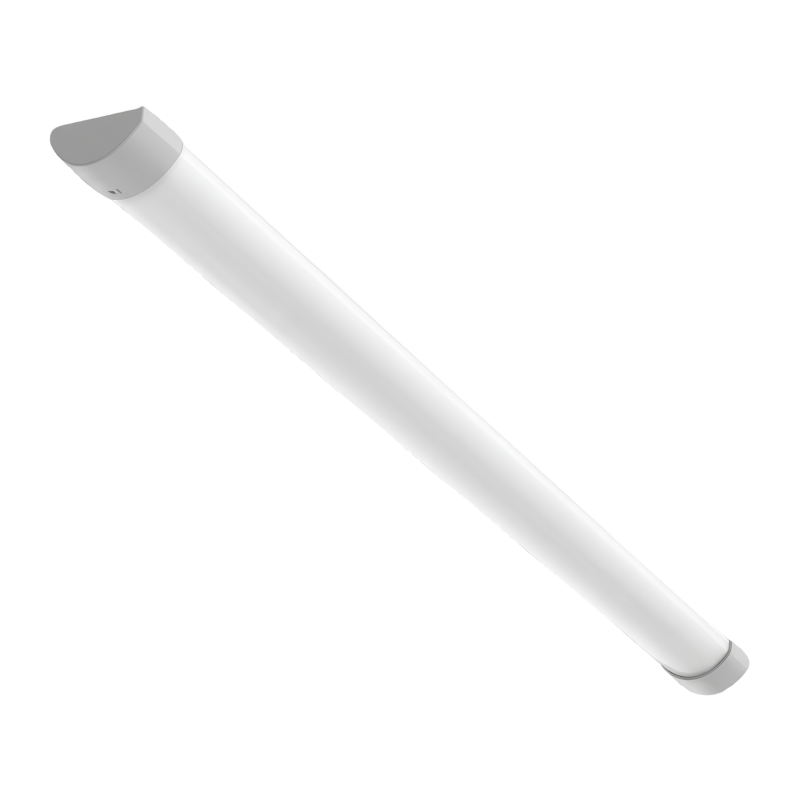

BG SERIES LED BATTEN HALFMOON LIGHT

BG SERIES LED BATTEN HALFMOON LIGHT

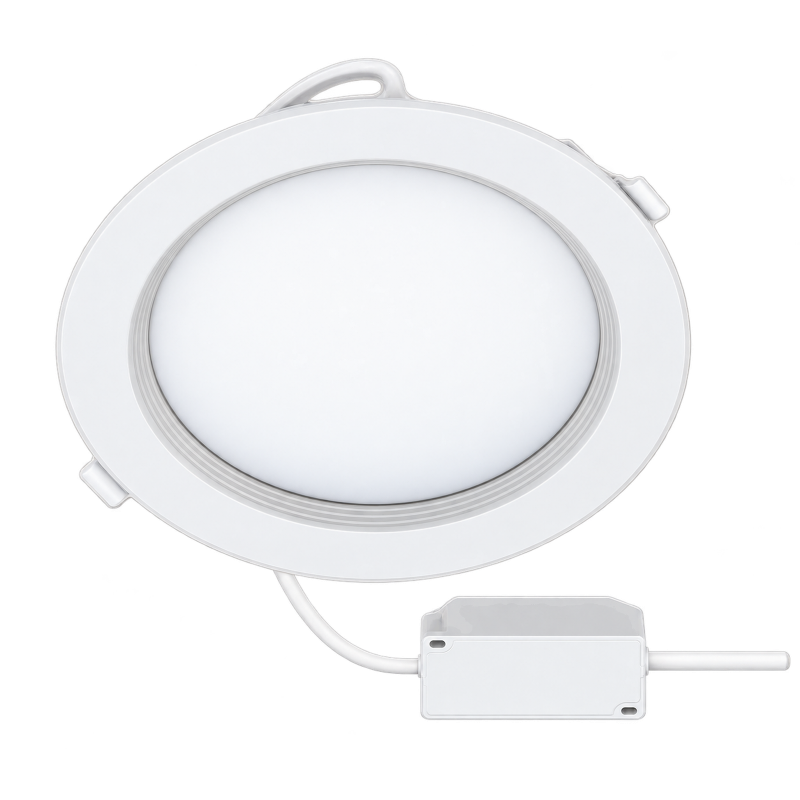

LED RECESSED DOWNLIGHT
