LED RECESSED DOWNLIGHT - den phong sach, den phong lanh, den kho lanh

LED RECESSED DOWNLIGHT - den phong sach, den phong lanh, den kho lanh

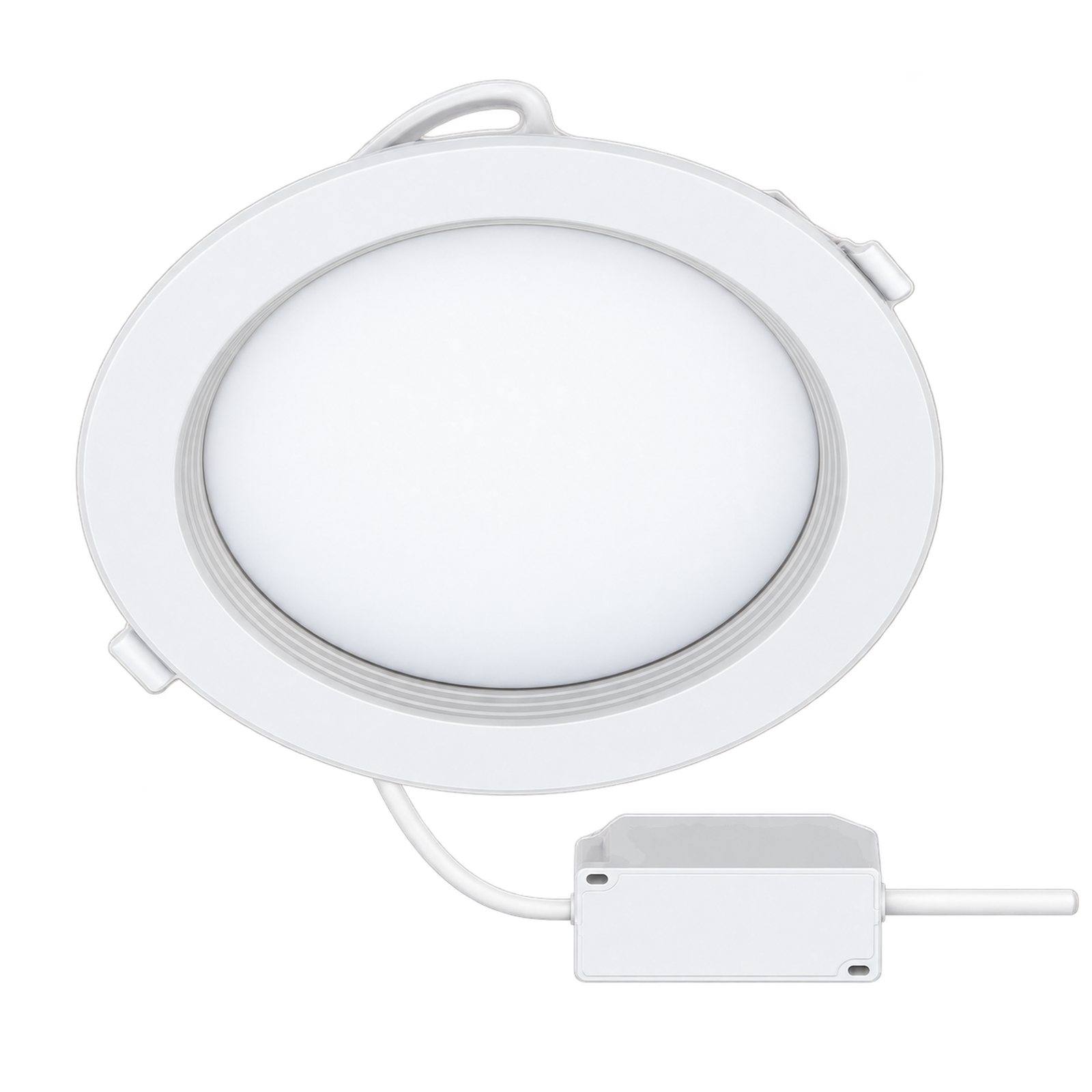

LED RECESSED DOWNLIGHT

  • LED Recessed downlight 1600x1690p

LED RECESSED DOWNLIGHT

Mô tả sản phẩm:

The Pi Power Solutions Recessed LED Downlight is a modern lighting solution featuring flexible power options (8W–20W), high luminous efficacy of 120 lm/W, and a lifespan of up to 50,000 hours. Built with a die-cast aluminum body for efficient heat dissipation, a PC diffuser for uniform anti-glare light distribution (120° beam angle), and a remote LED driver for easy installation and maintenance, it is an energy-efficient choice ideal for apartments, offices, and showrooms (input voltage: 100–240V, optional IP20/IP54 rating). This product is backed by Pi Power Solutions with a 1-to-1 replacement support and a 2-year warranty.

Mã Model: PP-PDL-8; PP-PDL-13; PP-PDL-18; PP-PDL-20

Contact for Price

  • INFORMATION
  • PRODUCT DIMENSIONS
  • DOWNLOAD DOCUMENT

Special features

  • High luminous efficacy up to 120 lm/W
  • High power factor up to PF > 0.9
  • High lifespan can up to 50.000 Hr
  • Housing aluminium materials good heat dissipation
  • PC diffuser good light transmission
  • The seperate LED driver is easy to install and replace

Application

  • Office & Commercial Buildings
  • Hospitality & Retail
  • Residential Projects
  • Healthcare & Education

Dimension and specification



Model numner PP-PDL-8 PP-PDL-13 PP-PDL-18 PP-PDL-20
Dimension

D132x36mm mm

Cutout D105mm

D327.8x155.2 mm

Cutout D145mm

D327.8x155.2 mm

Cutout D200mm
Power 80 W 13 W 18 W 20 W
Luminous flux 960 lm 15600 lm 2160 lm 2400 lm
Luminous efficacy 120 lm/W
Color rendering index  Ra ≥ 80
Beam angle 120º
Working temperature - 20ºC - 40ºC
Color temperature 4000K/5700K/6000K/6500K
Power factor  ≥ 0.9
Input Voltage 100 - 240 VAC
Ingress Voltage IP66
Lifespan 50.000 Hr



Download our catalog here.

Thông số kỹ thuật

Dimension (mm): Ø132*H36, Ø168*H36, D230*H40

Power: 8W/13W/18WW/20W

Luminous flux: 960 lm/1560 lm/2160 lm/2400 lm

Luminous eficacy: 120lm/W

Color rendering index: Ra ≥ 80

Beam angle: 120°

Working temperature: - 20 - 40°C

Color temperature:  4000K/5700K/6000K/6500K

Power factor: ≥ 0.9

Input Voltage: 100V - 240 VC

Ingress protection: IP20/IP54 (option)

Lifespan:  50.000 Hr



Other products

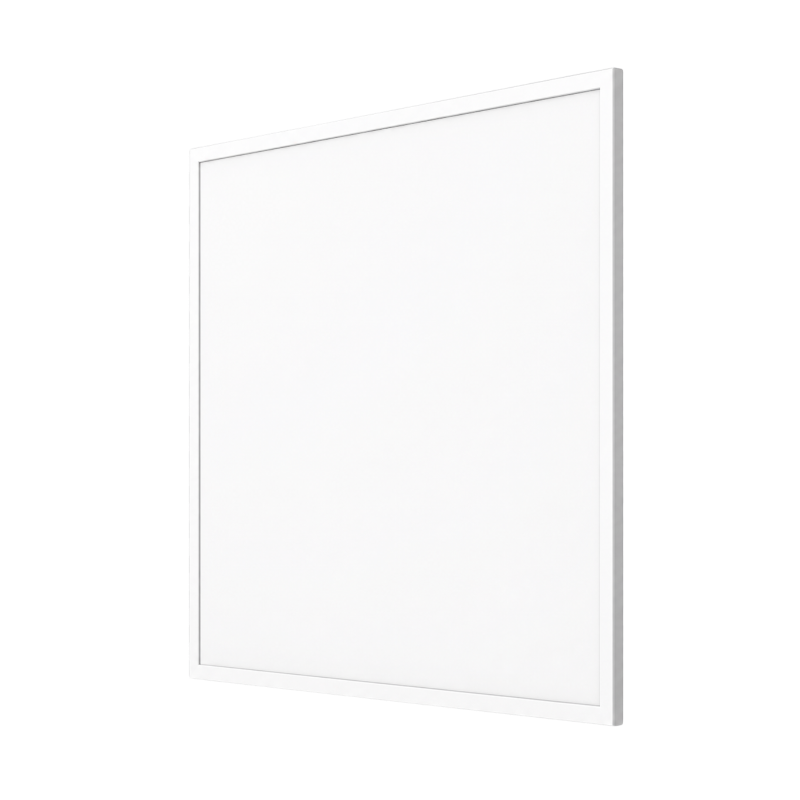

T-BAR LED PANEL LIGHT
