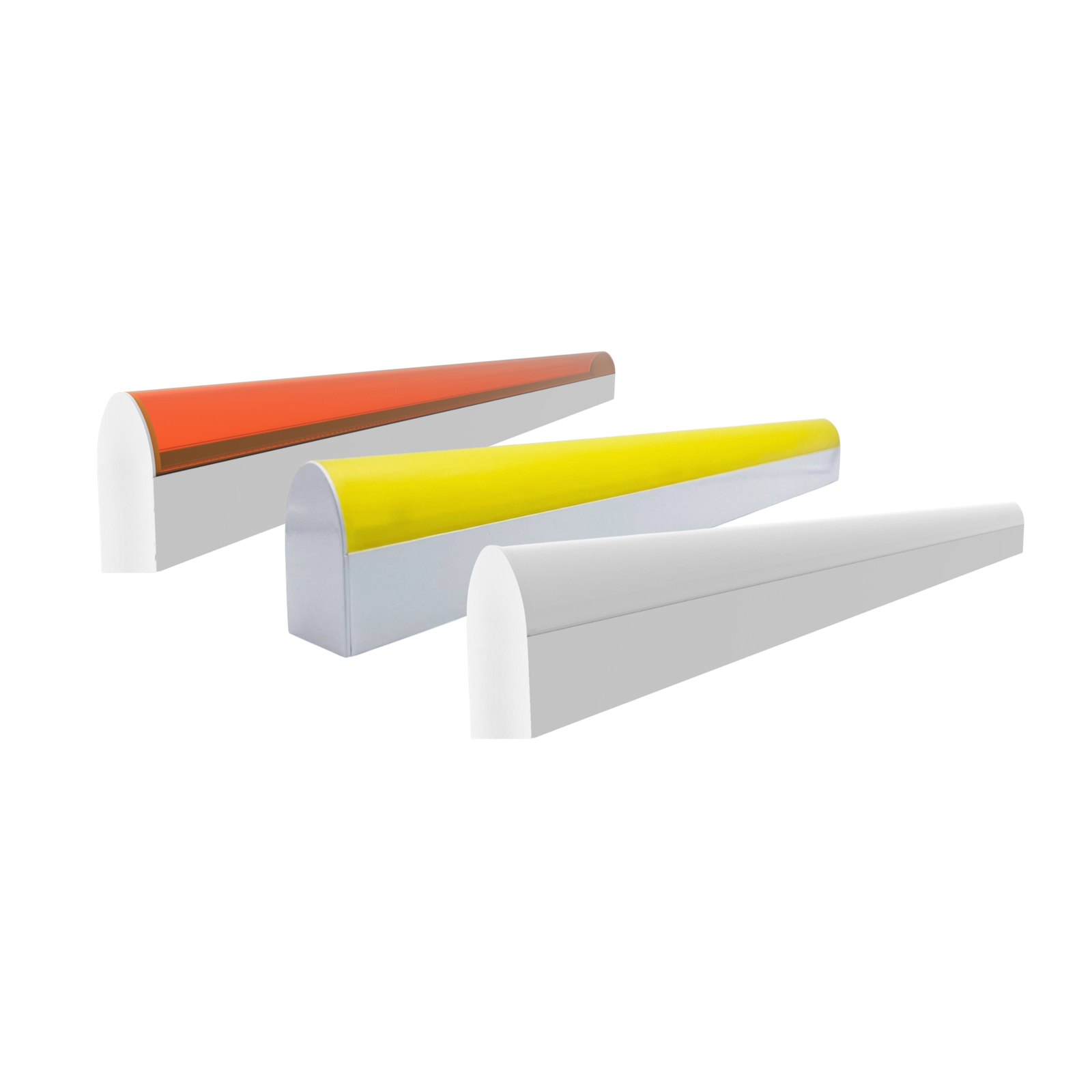

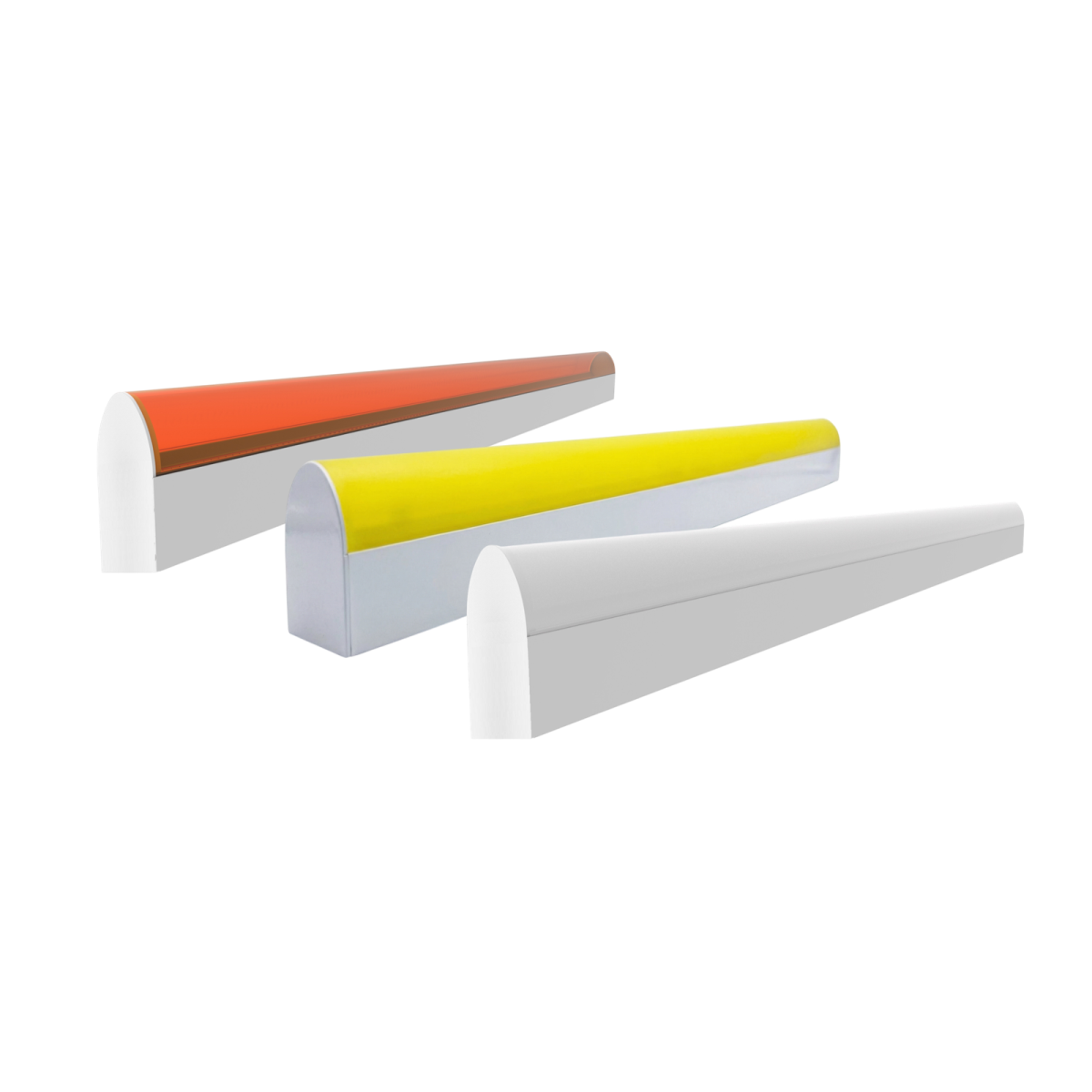

SLIM TEAR-DROP LED ECO LIGHT

  • batten tear-drop y
  • batten tear-drop a
  • Batten tear-drop w

SLIM TEAR-DROP LED ECO LIGHT

Mô tả sản phẩm:

LED Batten Tear-drop Eco light  is a high-quality lighting device of Pi Power Solutions, specialized for environments with strict requirements such as laboratories, cold rooms, clean rooms, photolithography rooms for manufacturing components, etc. With high luminous efficiency (up to 140lm/W), thin and light bar design, equipped with UV filter, long service life up to 50,000 hours. LED Batten Tear-drop Eco light (cool white vesion) is the perfect choice for installation in specific areas. Products are genuine warranty by Pi Power Solutions (exchange 1 for 1) within 2 years.

Mã Model: PP-O003-STDA-34

Contact for Price

  • INFORMATION
  • PRODUCT DIMENSIONS
  • DOWNLOAD DOCUMENT

Special features

  • Amber color for photolithography areas in precision component manufactoring
  • Yellow versiion suitable for PCB manufacturing areas
  • Slim and streamlined profile, minimizes dust accumulation
  • High efficiency up to 135 lm/W (standard)
  • UV-filtering protection (500/520 nm cutoff)

Application

  • Medical & Health
  • Pharmaceutical
  • Electronics
  • Cosmetic
  • Biotech
  • Optical
  • F&B factory

Dimension and Specification

Model number PP-O0033-STDA-34 PP-O0033-STDA-34 PP-O0033-STDA-34
Dimension 1200x87.5x45 mm 1200x87.5x54 mm 1200x87.5x45 mm
Power 34W 34 W 34 W
Luminous flux 4950 lm 4080 lm 3060 lm
Luminous efficacy 135 lm/W 120 lm/W 90 lm/W
Color Rendering Index  Ra ≥ 80
Beam angle 120º
Working temperature - 20ºC - 40ºC
Color temperature 6000K/6500K

3000K

(Filter yellow cut UV at 500nm)

3000K

(Filter amber Cut UV at 520 nm)
Power factor  ≥ 0.9
Input Voltage 220 - 240 VAC
Ingress protection IP20/IP54
Lifespan 50.000 Hr



Download our catalog here.

Thông số kỹ thuật

Dimension (mm): 1200*87.5*45

Power : 34W

Quang thông: 4950 lm; 4080 lm; 3060 lm

Hiệu suất ánh sáng (lm/W): 135 lm/W, 120 lm/W, 90 lm/W

Hệ số hoàn màu: Ra ≥ 80

Nhiệt độ hoạt động: - 20°C - 40°C

Nhiệt độ màu (K): 3000K, 600K/6500K

Góc chiếu: 120°

Hệ số công suất: ≥ 0.9

Công suất nguồn: 220 - 240 VAC

Tuổi thọ: 50.000 Hr



Other products

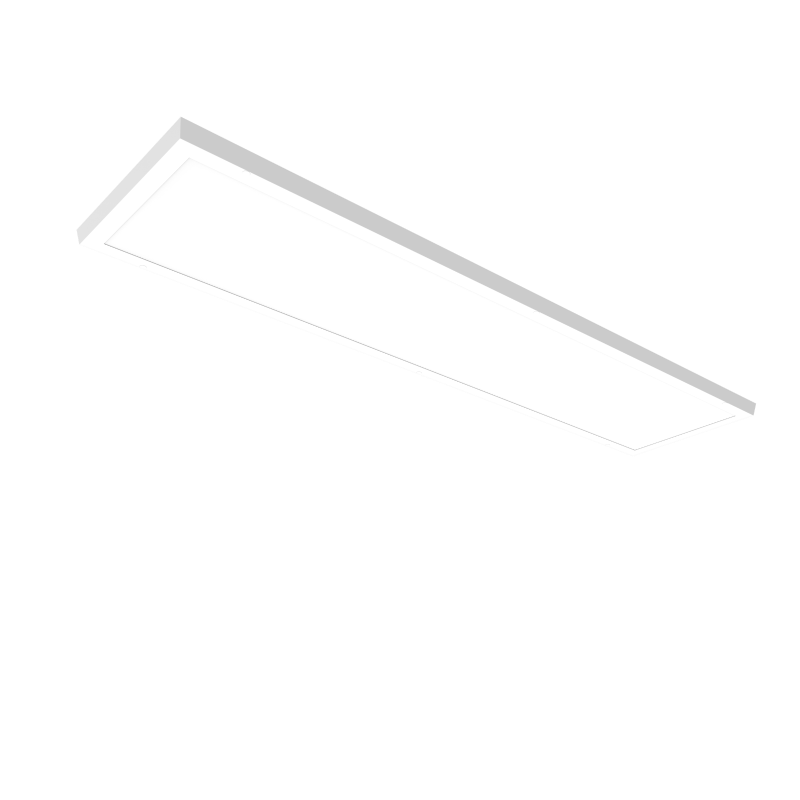

LED CLEANROOM MOUNTING PANEL LIGHT (SLIM VERSION)
