LED HIGHBAY SS-TYPE

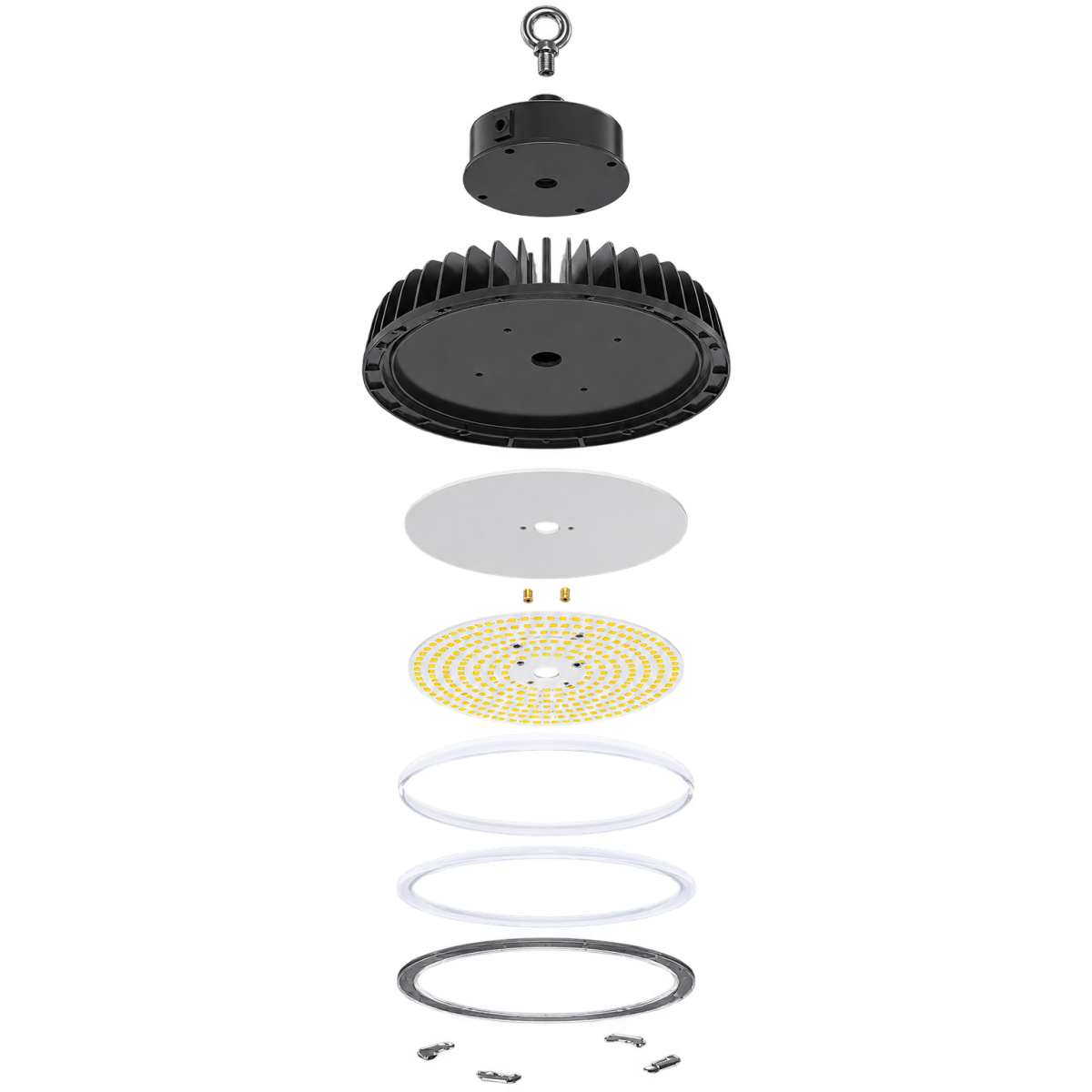

  • PP-HB-SS
  • ST-200.12-1
  • ST-200.10

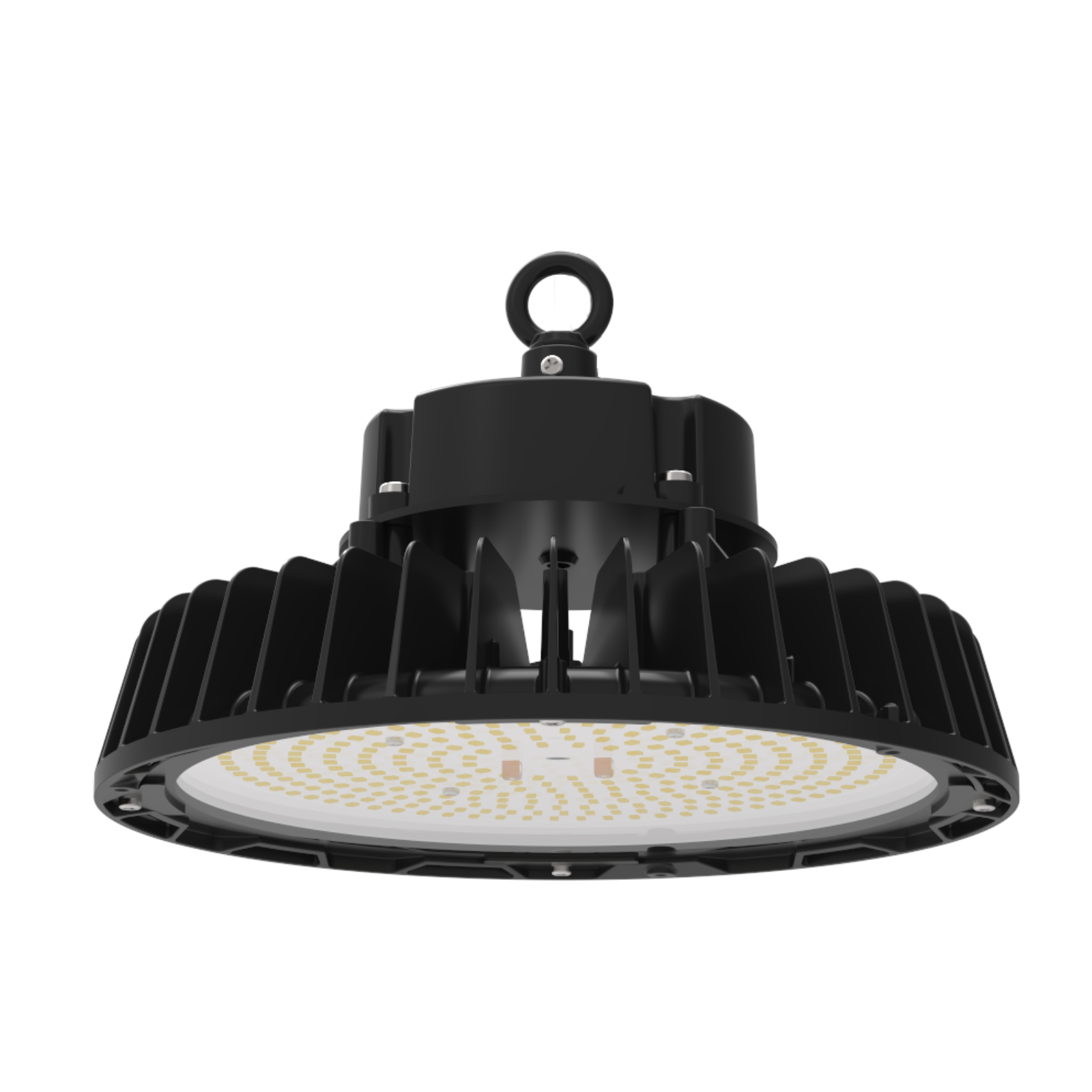

LED HIGHBAY SS-TYPE

Mô tả sản phẩm:

Led Highbay SS-Type is a high-quality lighting device from Pi Power Solutions with outstanding features, specialized for use in factories. With high efficiency up to 140lm/W, lifespan of 50,000 hours, and LM70 certified, Led Highbay SS-Type is the ultimate solution to replace traditional high pressure lamps. Products are genuine warranty by Pi Power Solutions (exchange 1 for 1) from 1 to 2 years.

Mã Model: PP-HB-S100; PP-HB-S150; PP-HB-S200

Contact for Price

  • INFORMATION
  • PRODUCT DIMENSIONS
  • DOWNLOAD DOCUMENT

Product's special feature

  • 6 kV surge protection
  • Impact resistance rating IK07
  • Lumileds LED chip, high luminous efficacy 140 lm/W
  • 5-step ultra-durable TGIC coating resistes harsh enviromental conditions and maintain optimal color
  • Aluminum alloy lamp body with hollow heat sink fins optimizes heat dissipation, reduces dust accumulation and reduces weight

Beam Angle

Three options for customers' choice

Application

Led Highbay SS-type is used in

  • Factory
  • Warehouse
  • Pharmaceutical
  • Cosmetic
  • F&B factory



Dimension and Spectification

Model number PP-HB-SS100 PP-HB-SS150 PP-HB-SS200
Dimension  D205x153 mm D235x161 mm D265x165 mm
Power 100 W 150 W 200 W
Luminous flux 16000 lm  24000 lm  32000 lm
Luminous efficancy 160 lm/W
Color rendering index  Ra ≥ 80
Beam angle 120º
Working temperature - 20 °C - 50°C
Color temperature 5700K/6000K/6500K
Power factor  ≥ 0.9
Input Voltage 198 - 264 VAC
Ingress protection  IP65
Lifespan  50.000 Hr

Download document here

Thông số kỹ thuật

Dimension (mm):  Ø205*(H)153; Ø235*(H)161; Ø265*(H)165

Power (W): 100W; 150W; 200W

Luminious Flux (lm):  5700K/6000K/6500K

Luminous efficiency (lm/W):160 lm/W

Color temperature (K):  5700K/6000K/6500K )

Color rendering index: Ra ≥ 80

Working Temp: - 20°C - 50°C

Power Factor: ≥ 0.9

Input Voltage: 198 - 264 VAC

Ingress protection: IP65

Lifespan: 50.000 Hr
