LED HIGHBAY LIGHT MCplus-TYPE

  • TS_Highbay_3

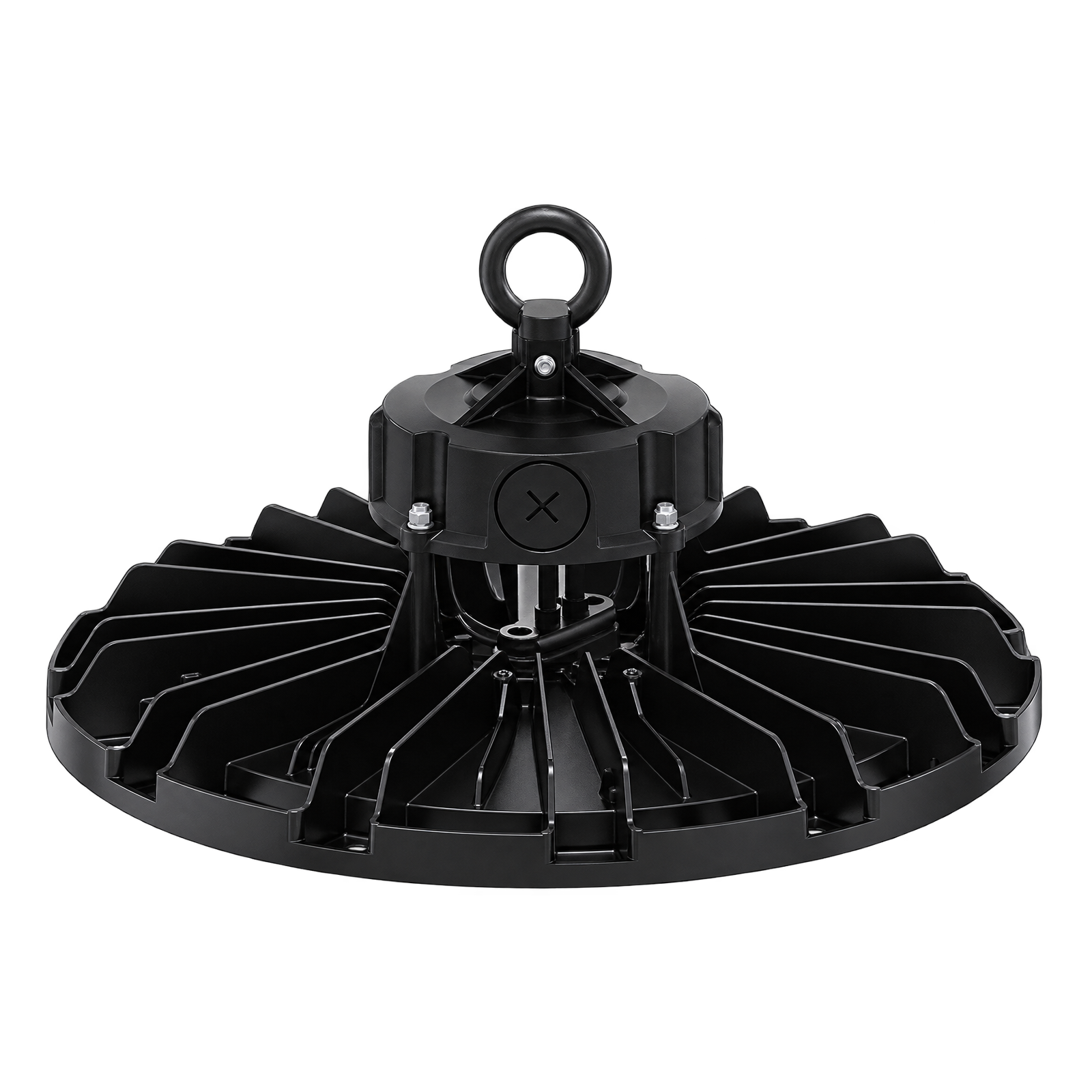

LED HIGHBAY LIGHT MCplus-TYPE

Mô tả sản phẩm:

LED HIGHBAY light MCplus-Type is a high-quality lighting device of Pi Power Solutions with outstanding features, specialized for use in factories. With surge protection 4kV and built-in efficient heat dissipation device, LED HIGHBAY light MCplus-Type is a safe solution for the workplace. Products are genuine warranty by Pi Power Solutions (exchange 1 for 1) from 1 to 2 years.

Mã Model: PP-O001-HBMCP-100; PP-O001-HBMCP-150; PP-O001-HBMCP-200

Contact for Price

  • INFORMATION
  • PRODUCT DIMENSIONS
  • DOWNLOAD DOCUMENT

Product's special features

  • 4 kV surge protection
  • Economical solution, balnacing performance and cost
  • Smart sensor (optional) Microwave/PIR
  • High-quaity SEOUL LED chip, luminous efficiency up to 160 lm/W
  • Efficient integrated heat dissipation system

Application

  • Factory
  • Pharmaceutical
  • Electronics
  • Cosmetic
  • Bio technology




Dimension and Specification

Model number PP-O001-HBMCP-100 PP-O001-HBMCP-150 PP-O001-HBMCP-200
Dimension  D250x110 mm D250x110 mm D280x120 mm
Power 100 W 150 W 200 W
Luminous flux 16000 lm | 18000 lm 24000 lm | 27000 lm  32000 lm | 36000 lm
Luminous efficancy 160 lm/W | 180 lm/W
Color rendering index  Ra ≥ 80
Beam angle 120º
Working temperature - 20°C - 45°C | - 20 °C - 50°C
Color temperature 5700K/6000K/6500K
Power factor  ≥ 0.9
Input Voltage 120 - 277 VAC
Ingress protection  IP65
Lifespan 30.000 Hr | 50.000 Hr



Download document here.

Thông số kỹ thuật

Dimension (mm): Ø250*(H)110; Ø250*(H)110; Ø280*(H)120

Power: 100W; 150W; 200W

Luminious Flux: 16000 lm | 18000 lm; 24000 lm | 27000 lm ; 32000 lm | 36000 lm

Luminous efficiency : 160 lm/W | 180 lm/W

Color Rendering Index:  Ra ≥ 80

Beam Angle: 120°

Working Temperature: - 20°C - 45°C | - 20 °C - 50°C

Color Temperature: 5700K/6000K/6500K

Power Factor:  ≥ 0.9

Input Voltage: 120 - 277 VAC

Ingress protection: IP65

Life Spend:  30.000 Hr | 50.000 Hr

Other products

LED SUPER HIGHBAY LIGHT HI-TYPE

LED SUPER HIGHBAY LIGHT HI-TYPE

COLD STORAGE DSC-TYPE HIGHBAY LIGHT

COLD STORAGE DSC-TYPE HIGHBAY LIGHT

LED HIGHBAY F&B-TYPE

LED HIGHBAY F&B-TYPE

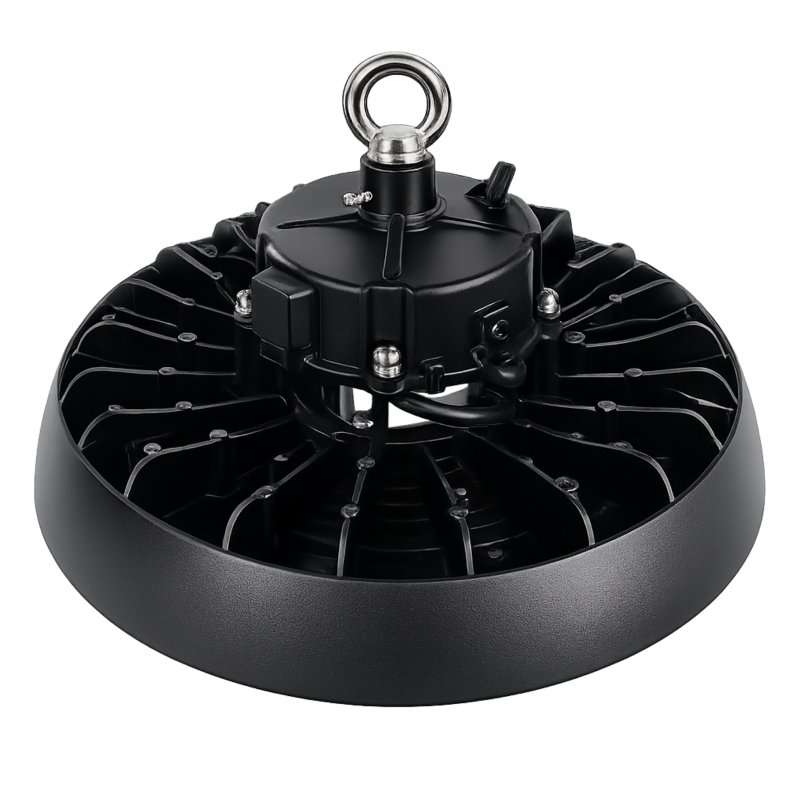

COLD STORAGE LED HIGHBAY TS-TYPE
