COLD STORAGE LED HIGHBAY TS-TYPE

  • PP-HB-TS
  • TS_Highbay_1

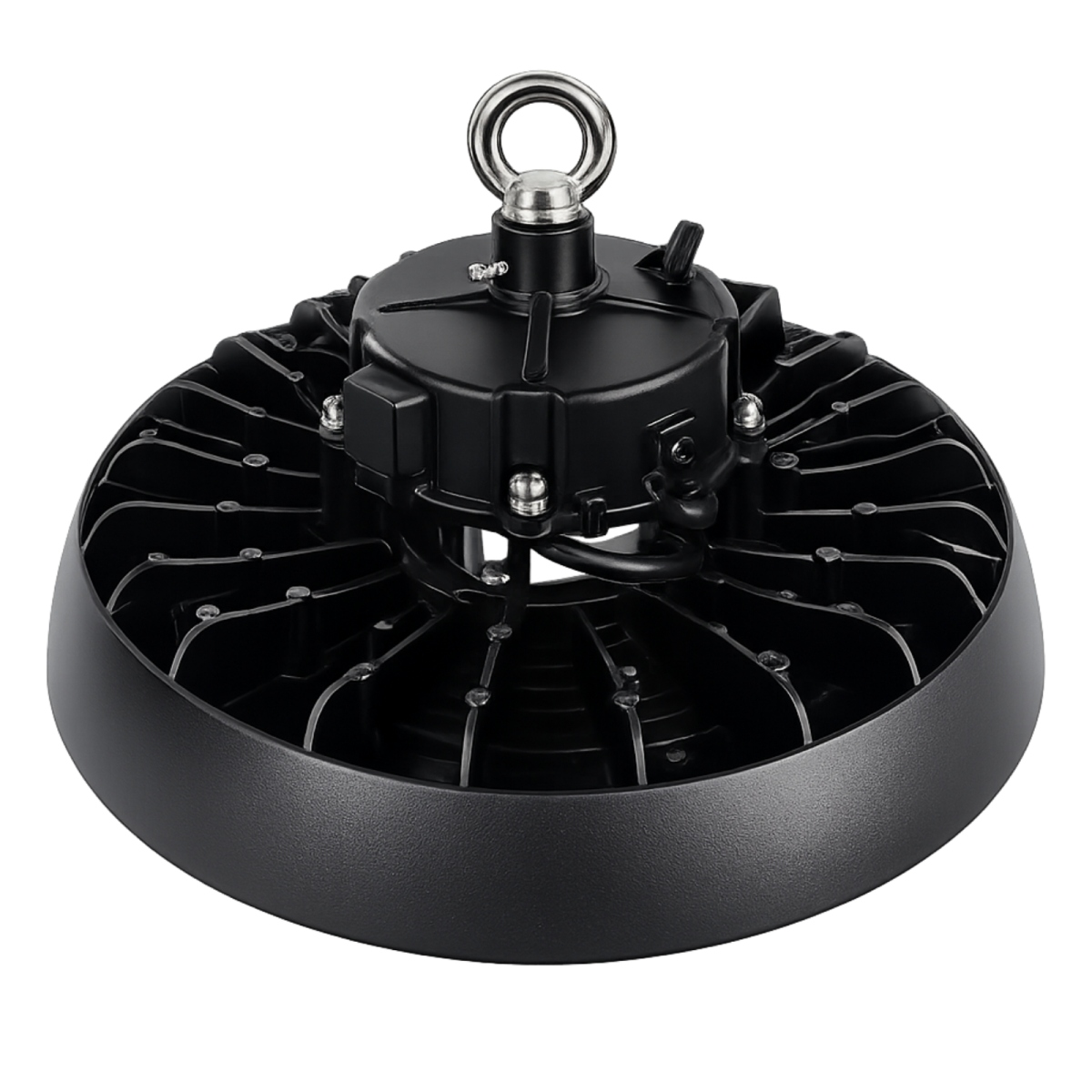

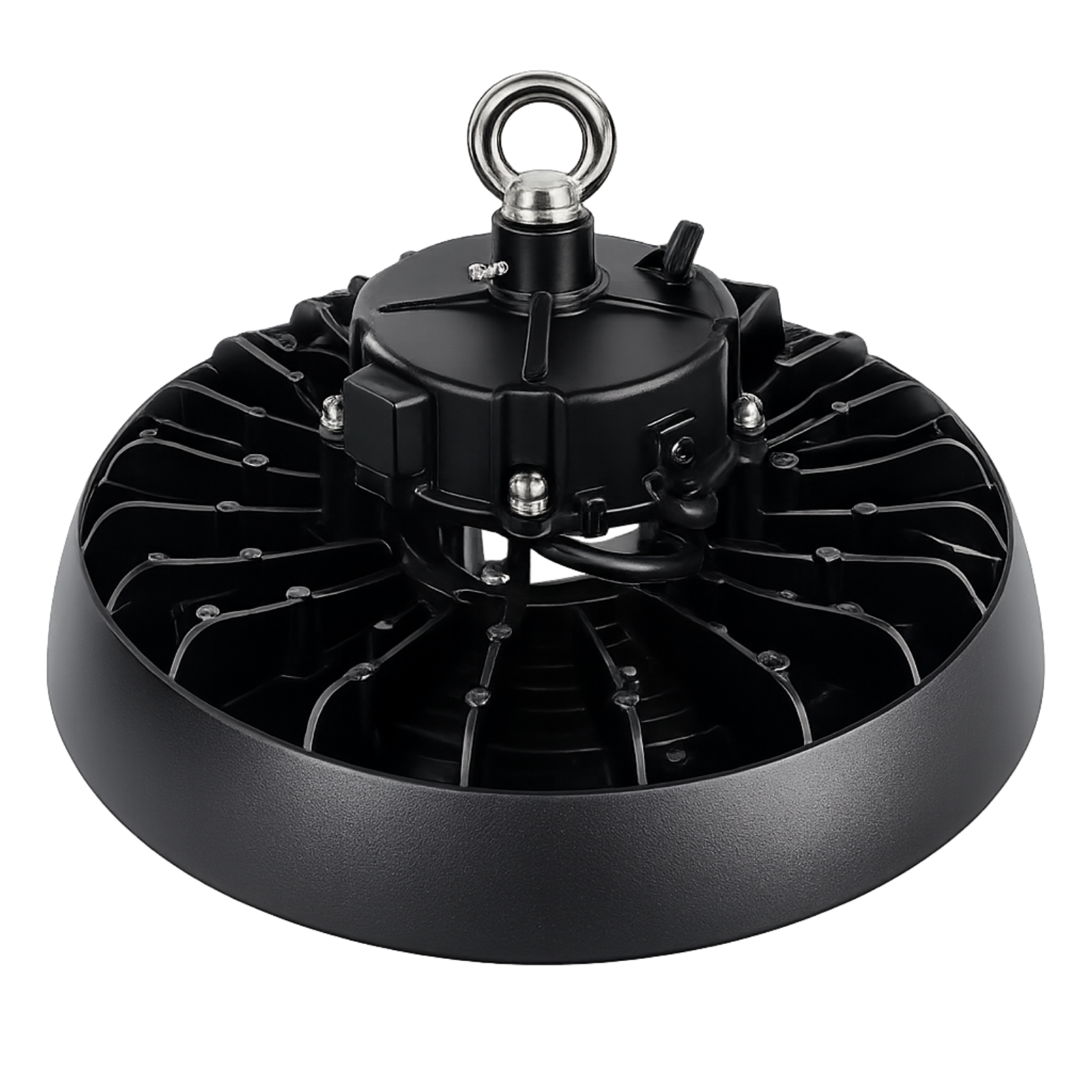

COLD STORAGE LED HIGHBAY TS-TYPE

Mô tả sản phẩm:

Cold Storage LED Highbay TS-Type is a high-quality lighting device of Pi Power Solutions with outstanding features, specialized for use in cold storage area. With the ability to endure harsh environment down to -50°C và lifespan of 50.000 hours. Cold Storage LED Highbay TS-Type is an ideal solution for cold storgae. Products are genuine warranty by Pi Power Solutions (exchange 1 for 1) from 2 to 3 years.

Mã Model: PP-HB-TS100; PP-HB-TS150; PP-HB-TS200

Contact for Price

  • INFORMATION
  • PRODUCT DIMENSIONS
  • DOWNLOAD DOCUMENT

Product's feature

  • Dimming -capable (1-10V compatible)
  • Smart sensor: Motion/PIR via Zhaga port
  • 6 kV surge protection
  • IK10 and IP66 for Front Lens
  • Compact and robusst design

Application

Cold storage LED Highbay TS-Type is used in

  • Medical & Health
  • Pharmaceuticals
  • Electronics
  • Biotech
  • Optics
  • F&B factory



Dimension and Specification

Model number PP-O001-HBTS100 PP-O001-HBTS150 PP-O001-HBTS200
Dimension D250x108 mm D265x117 mm D300x120 mm
Power 100 W 150 W 200 W
Luminous Flux 14000 lm 21000 lm 28000 lm
Luminous efficacy 140 lm/W
Color Rendering Index  Ra ≥ 80
Beam Angle 120º
Working Temperature - 20 °C - 50°C
Color Temperature 5700K/6000K/6500K
Power Factor  ≥ 0.9
Input Voltage 120 - 277 VAC
Ingress Protection  IP65
Lifespan 50.000 Hr



Download document here

Thông số kỹ thuật

Dimension (mm): Ø250*(H)108;  Ø280*(H)117;  Ø300*(H)120

Power: 100 W; 150 W; 200 W

Luminous Flux: 14000 lm; 21000 lm; 28000 lm

Luminous efficacy: 140lm/W

Color Rendering Index: Ra ≥ 80

Beam angle: 120°

Working temperature: - 20°C - 50°C

Color temperature: 5700K/6000K/6500K

Power factor: ≥ 0.9

Input Voltage: 120 - 277 VAC

Lifespan: 50.000Hr

Other products

LED SUPER HIGHBAY LIGHT HI-TYPE

LED SUPER HIGHBAY LIGHT HI-TYPE

COLD STORAGE DSC-TYPE HIGHBAY LIGHT

COLD STORAGE DSC-TYPE HIGHBAY LIGHT

LED HIGHBAY F&B-TYPE

LED HIGHBAY F&B-TYPE

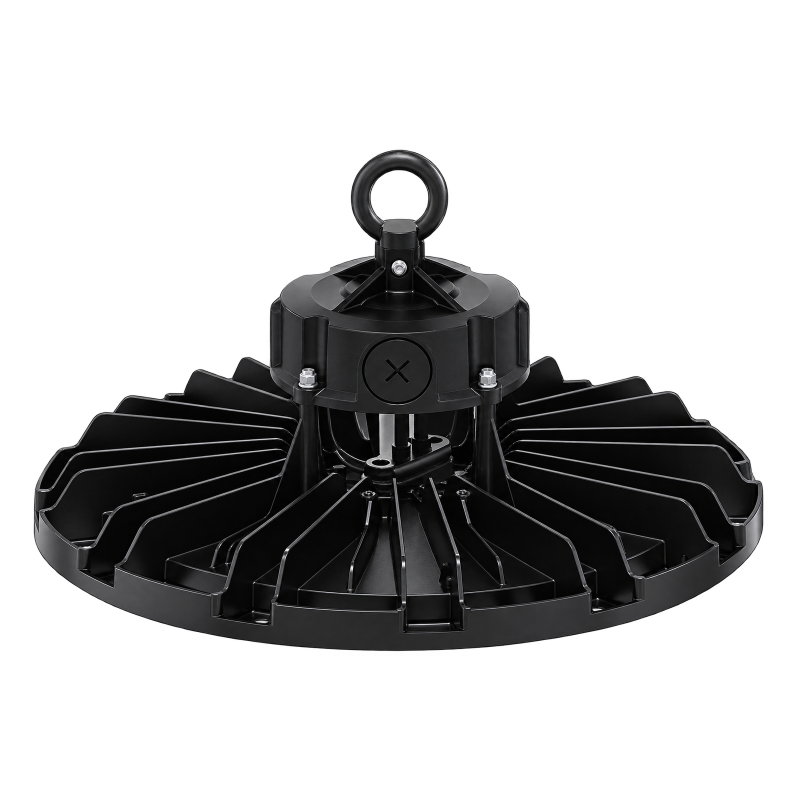

LED HIGHBAY LIGHT MCplus-TYPE
