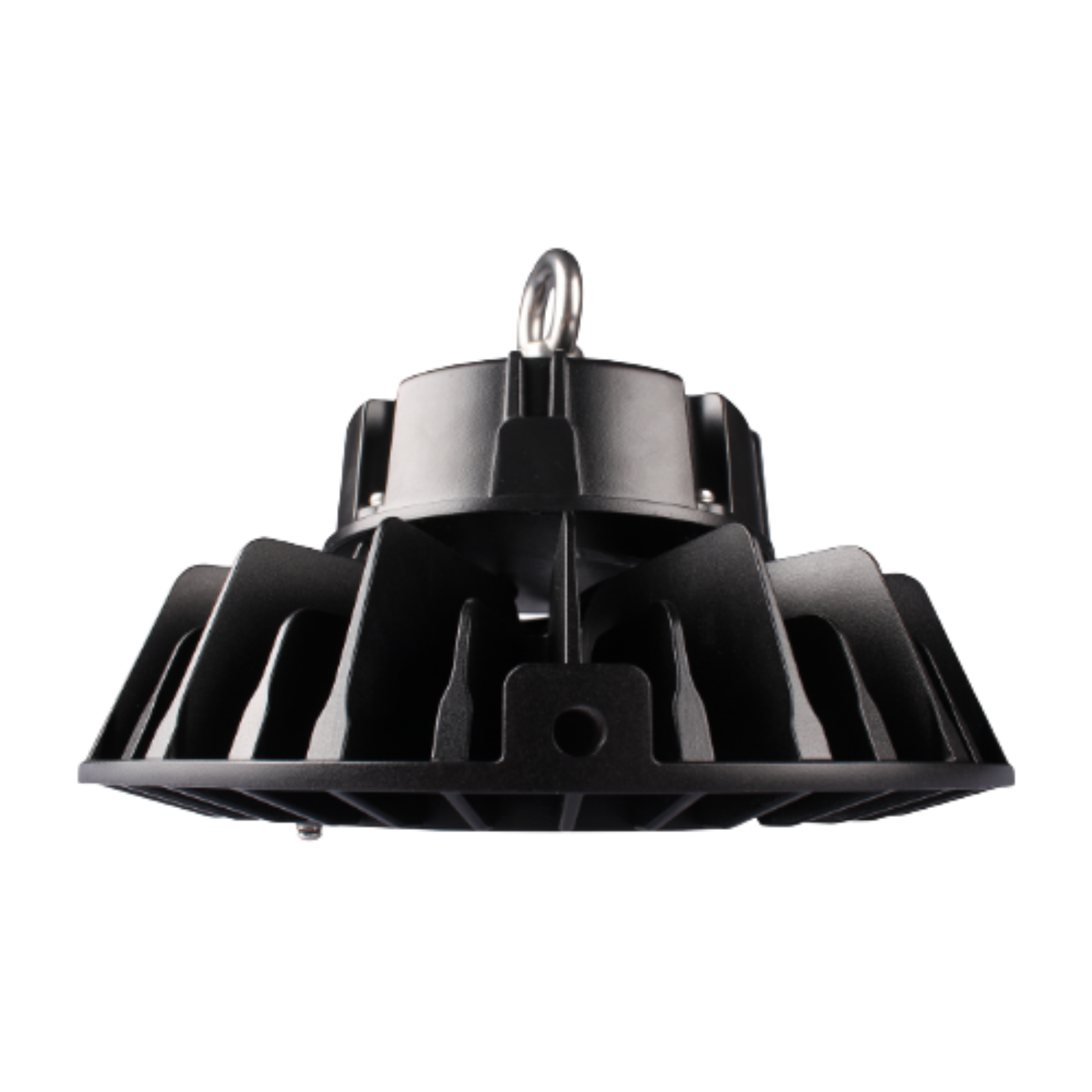

COLD STORAGE LED HIGHBAY CS-TYPE

COLD STORAGE LED HIGHBAY CS-TYPE

Mô tả sản phẩm:

Cold Storage LED Highbay CS-Type is a high-quality lighting device of Pi Power Solutions with outstanding features, specialized for use in cold storage area. With the ability to endure harsh environment down to -40°C và lifespan of 50.000 hours, Cold Storage LED Highbay CS-Type is an ideal solution for cold storgae. Products are genuine warranty by Pi Power Solutions (exchange 1 for 1) from 2 to 3 years.



Mã Model: PP-HB-CS100; PP-HB-CS150; PP-HB-CS200

Contact for Price

  • INFORMATION
  • PRODUCT DIMENSIONS
  • DOWNLOAD DOCUMENT

Product's feature

  • With the ability to endure harsh environments down to -40°, ideal solution for cold storage
  • Thicker aluminum alloy fins arrangement enhanced heat dissipation area
  • PHILIPS LUMILEDS chips
  • Wide operating voltage range
  • Using breathe device for removing moisture



Application

Cold storage LED Highbay CS-Type is used in

Download catalog here

Thông số kỹ thuật

Dimension (mm): ø245*(H)180;  ø280*(H)191;  ø300*(H)196

Power (W): 100W; 150W; 200W

Luminious Flux (lm): 14000lm; 21000lm; 28000lm

Efficiency (lm/W): 140lm/W

CRI: 80Ra

Working Temp: -40°C~50°C

Color Temp (K): 5700K (4000K/ 6000K)

Power Factor: >0.9

Input Voltage: 120V-277V

Life Spend: 50.000Hr

Other products

TRIPROOF LINEAR LIGHT IP66

TRIPROOF LINEAR LIGHT IP66

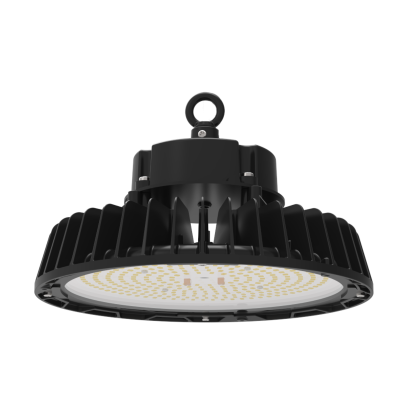

LED HIGHBAY SS-TYPE
