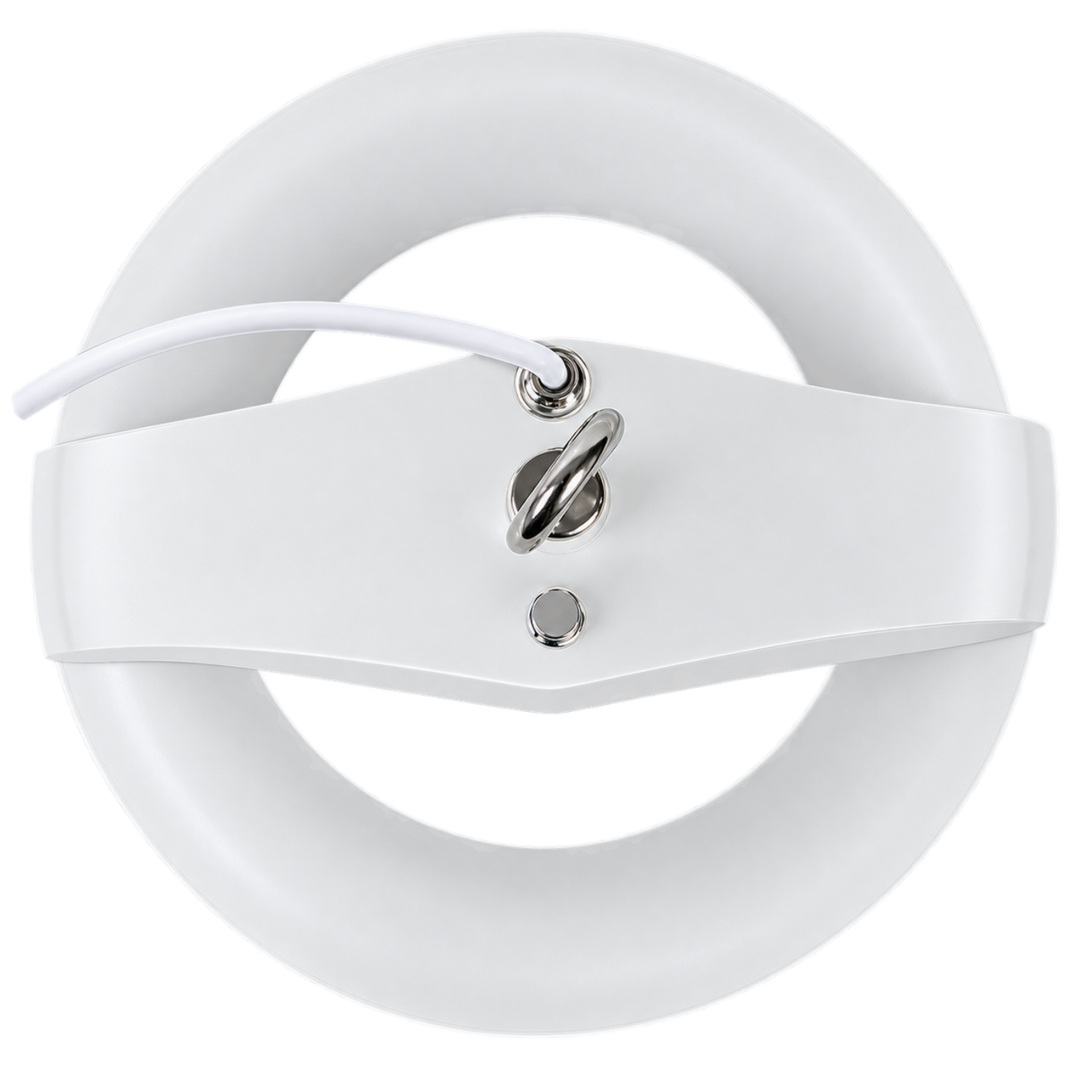

LED HIGHBAY F&B-TYPE

Mô tả sản phẩm:

LED Highbay F&B-Type light is a high-quality lighting device from Pi Power Solutions, designed for specialized lighting environments such as food areas, F&B, etc. It offers high lighting efficiency (up to 150lm/W) and features a dust-resistant, oil-resistant, and water-resistant design. Its IP69K rating makes it fully suitable for environments with high levels of cleaning agents. The product is equipped with a breather valve to ensure the longevity of the light, preventing moisture accumulation on the surface, and boasts a long lifespan of up to 50,000 hours of operation.

Đèn LED Highbay F&B-Type light is the perfect choice for installation in specialized areas such as food areas, F&B, and cleaning environments. The product comes with a genuine warranty from Pi Power Solutions (1-for-1 exchange) for 2 years.

Mã Model: PP-HB-FB100; PP-HB-FB150; PP-HB-FB200

Contact for Price

Special features

  • Specially designed for dust-proof and food processing applications
  • IP65 rated, suitable for high-pressure water jet cleaning
  • Polycarbonate lens
  • Durable and corrosion-resistant powder coating
  • Breather valve for heat dissipation
  • Smart sensor compatible (optional)

Application

  • F&B factory

Dimension and Spectation

Model number PP-HB-FB100 PP-HB-FB150 BPP-HB-FB200
Dimension D381x102.7 mm
Power 100 W 150 W 200 W
Luminous flux 15000 lm 22500 lm 30000 lm
Luminous efficacy 150 lm/w
Color Rendering Index Ra ≥ 80
Beam angle  120°
Working temperature  - 20°C - 40°C
Color temperature 5700K/6000K
Power factor  ≥ 0.9
Input Voltage 120 - 277 VAC
Ingress protection IP69K
Lifespan 50.000 Hr

kich-thuoc-den-highbay-thuc-pham

Download document here.

Thông số kỹ thuật

Dimension (mm): Ø381*102.7

Power (W): 100 W; 150 W; 200 W

Luminious Flux (lm): 1500 lm; 22500 lm; 30000 lm

Efficiency (lm/W): 150lm/W

Color Temp (K): 5700K/6000K

CRI: Ra ≥ 80

Beam angle: 120°

Working Temp: -20°C - 40°C

Power Factor: ≥ 0.9

Input Voltage: 120V - 277 VAC

Ingress protection: IP69K

Life Spend: 50.000 Hr
