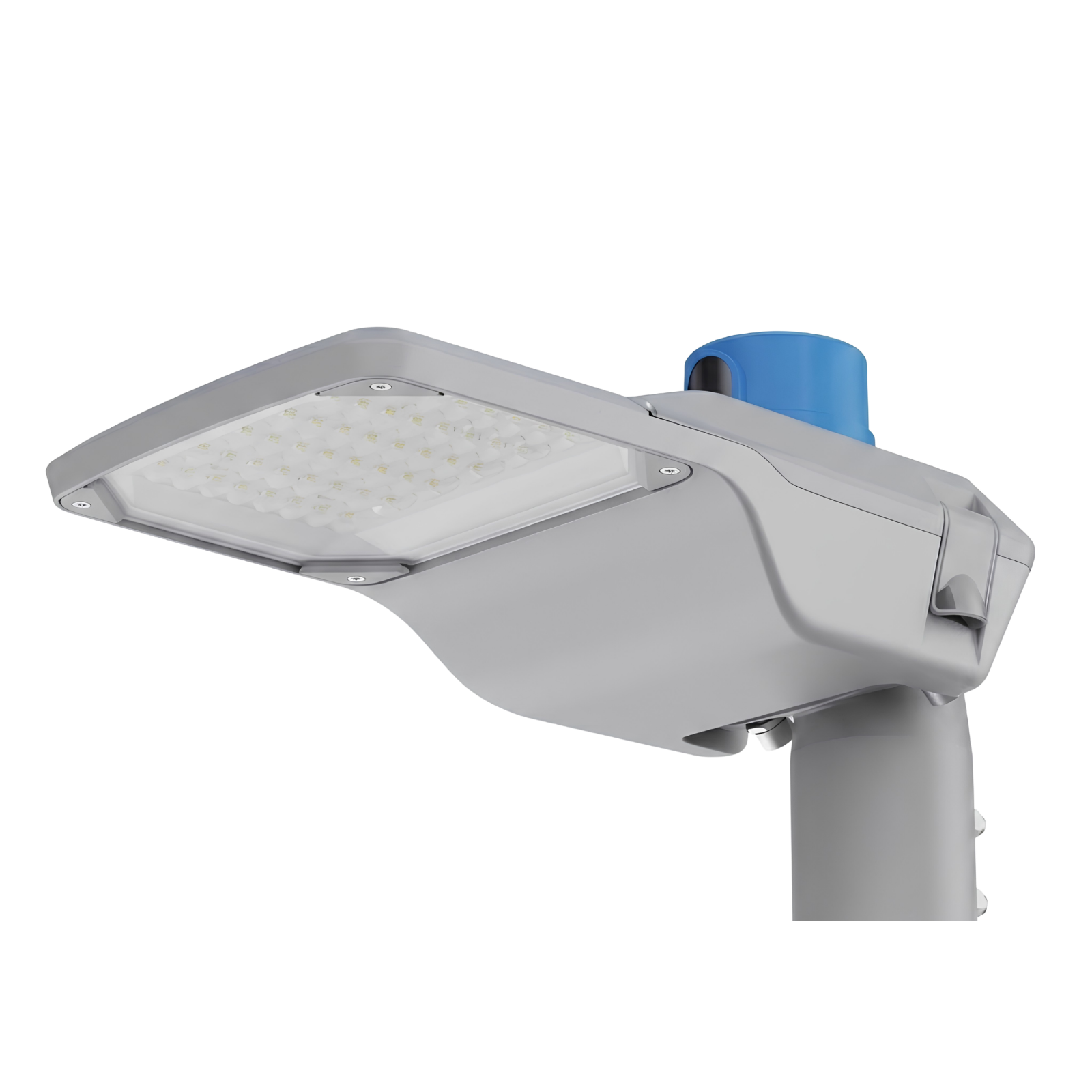

LED STREET LIGHT HKA SERIES

  • PP-O001-HKA-90-3-V3
  • PP-O001-HKA-90_2_V2

LED STREET LIGHT HKA SERIES

Mô tả sản phẩm:

LED Street Light HKA Series is a premium outdoor lighting product supplied by Pi Power Solutions. Featuring a luminous efficacy of up to 160 lm/W, it provides highly effective outdoor illumination and is widely favored for its exceptional energy efficiency and impressive lifespan of up to 50,000 hours. With a modern, durable design and versatile features, the HKA street light stands out as an ideal, safe, and cost-effective lighting solution for modern traffic and urban infrastructure projects.

Mã Model: PP-O001-HKA-90; PP-O001-HKA-150

Contact for Price

  • INFORMATION
  • PRODUCT DIMENSIONS
  • DOWNLOAD DOCUMENT

Special features

  • 10KV or 20KV surge protection device
  • Super-durable thanks to robust high pressure die-casted aluminum housing
  • Quick installation and maintenance through patented tool-free entry
  • Smart Interface (NEMA & Zhaga & D4I) for smart city applications with modular design for future upgrade (Optional)
  • C4 anti-corrosion protection
  • IP66 and IK08

Dimensions and Specification



Model number PP-O001-HKA-90 PP-O001-HKA-90
Dimension 430x210x135 mm 540x274x135 mm
Power 90 W 150 W
Luminous flux 14400 lm 24000 lm
Luminous efficacy  160 lm/W
Color Rendering Index  Ra ≥ 80
Beam angle TYPE II
Working temperature - 40°C - 50°C
Color temperature 3000K / 4000K / 5000K / 6000K
Power factor  ≥ 0.95
Input Voltage 120 - 277 VAC
Ingress protection  IP66
Lifespan  50.000 Hr



Thông số kỹ thuật

Dimension: 430*210*135 mm;  540*274*135 mm

Power: 90 W; 150 W

Lumious flux: 14400 lm; 24000 lm

Luminous efficacy: 160 lm/W

Color Rendering Index: Ra ≥ 80

Beam angle: TYPE II

Working temperature: - 40°C - 50°C

Color temperature: 3000K/4000K/5000K/6000K

Power factor: ≥ 0.95

Input Voltage: 120 - 270 VAC

Ingress Proctection: IP66

Lifespan:  50.000 Hr

Other products

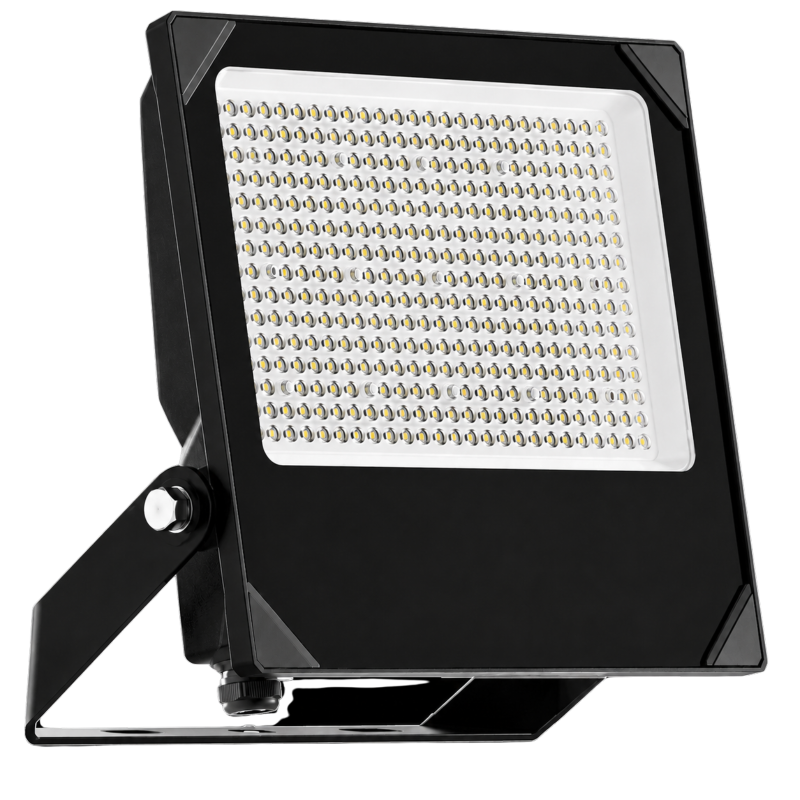

LED FLOODLIGHT HLE SERIES

LED FLOODLIGHT HLE SERIES

LED FLOOD LIGHT FC SERIES

LED FLOOD LIGHT FC SERIES

LED TURBO TRIPROOF LIGHT

LED TURBO TRIPROOF LIGHT

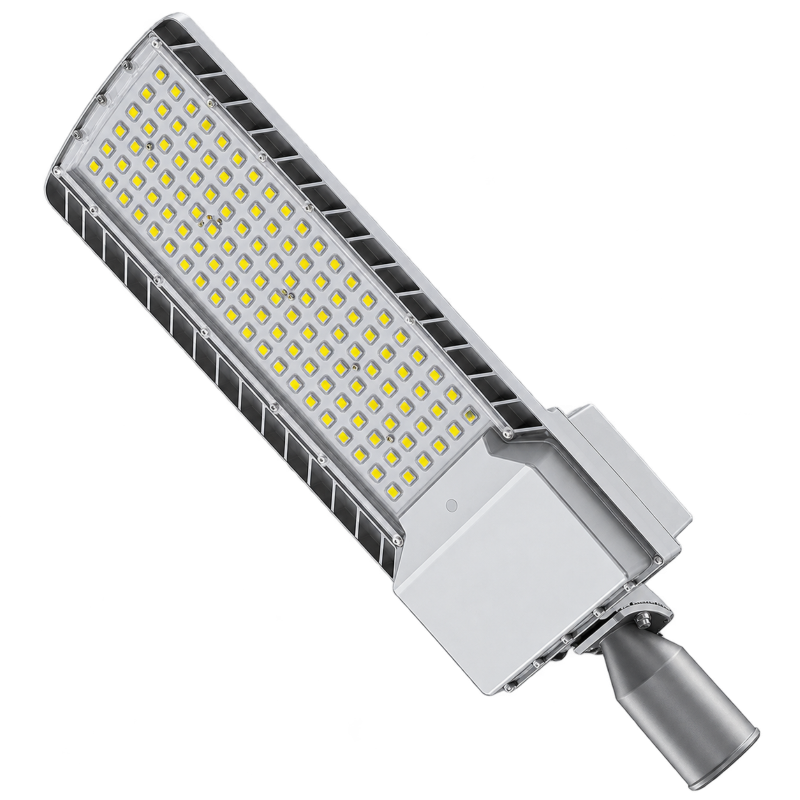

LED STREET LIGHT ST1 SERIES

LED STREET LIGHT ST1 SERIES

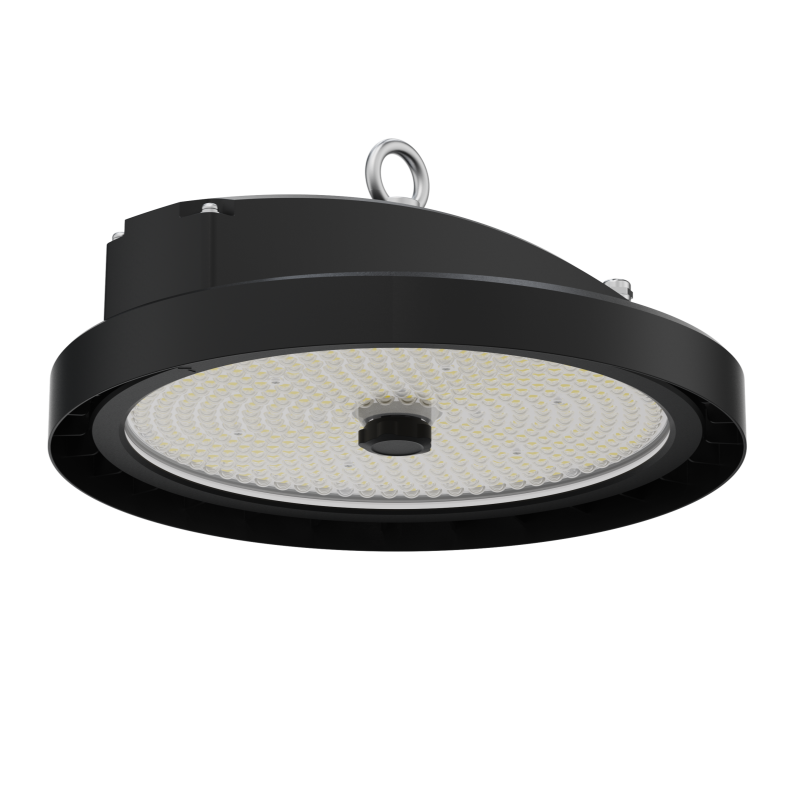

LED SUPER HIGHBAY LIGHT HI-TYPE
